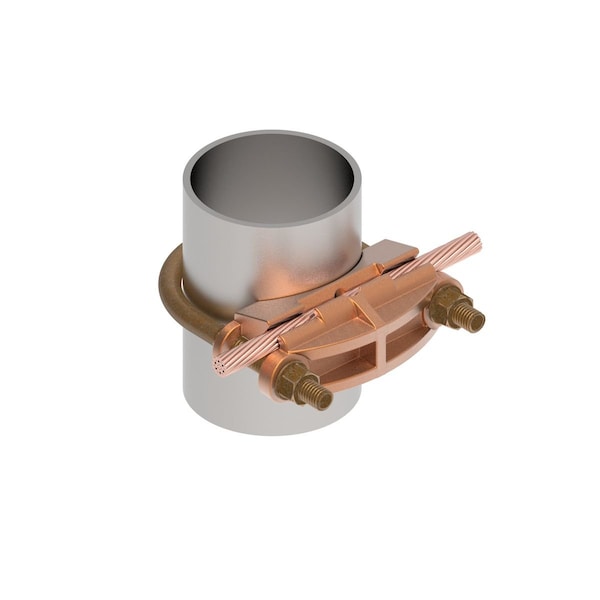

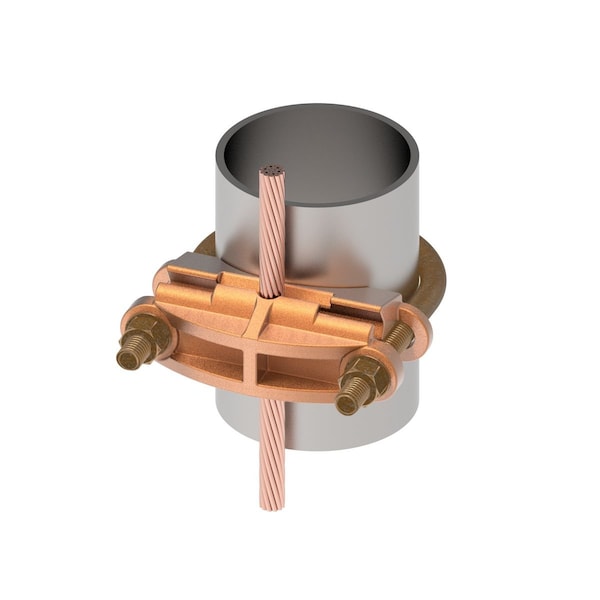

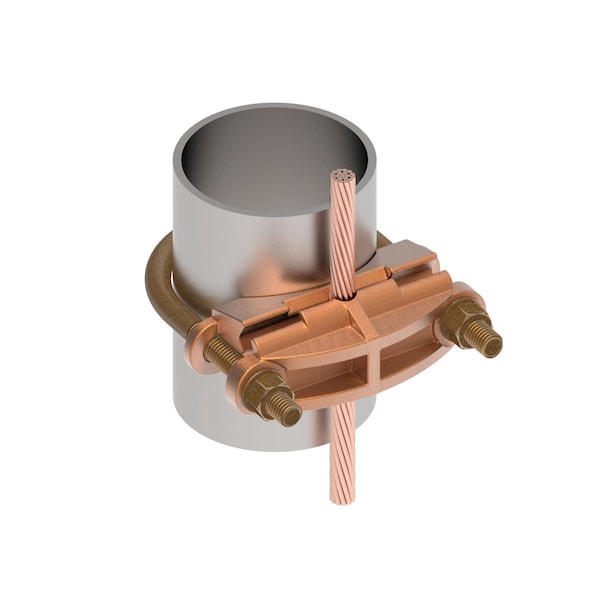

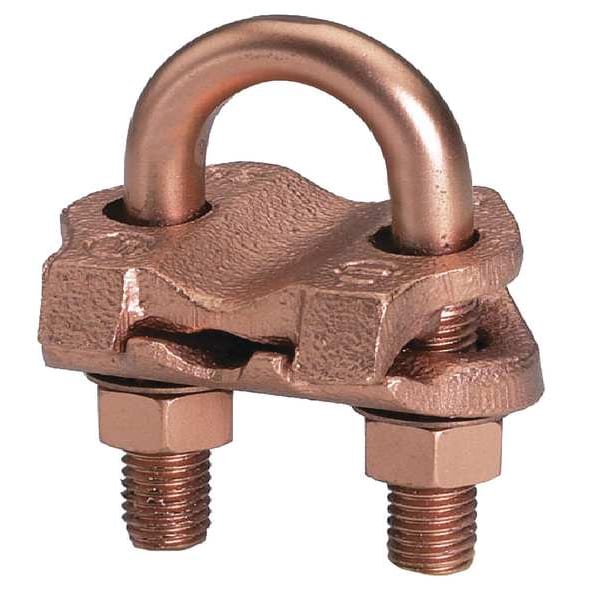

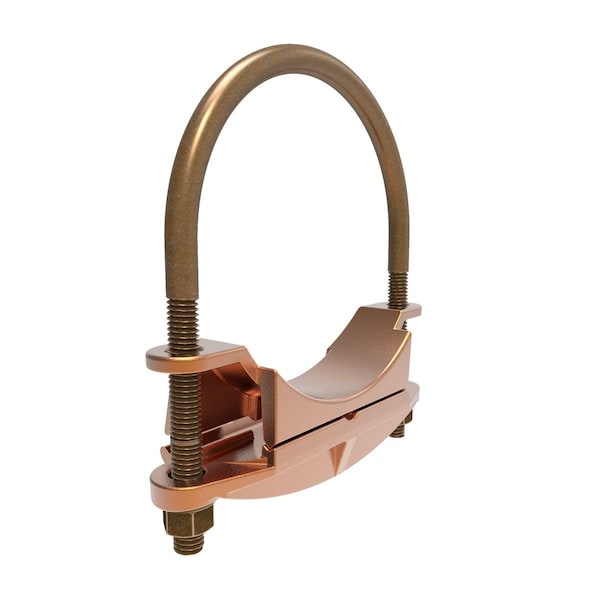

Pipe Ground Clamp, 1/0AWG, 6.38In
| Item - Grounding Connector | Grounding Connector |
|---|---|
| Item | Grounding Connector |
| Type | COMMERCIAL |
| Type - Grounding Connector | Mechanical |
| Wire Size - Grounding | 2/0 AWG to 250 kcmil |
| Material | Copper |
| Grounding Wires Connected To | 4 in Pipe, 4 in to 4 1/2 in |
| Standards | UL Listed Direct Burial, UL467 |
| Material - Grounding Connector | Copper Alloy |
| Number of Wires - Grounding | 1 |
| Conductor Size | 250 kcmil to 2/0 |
| Material of Construction | Copper Alloy |
| Rod Dia. | 4" to 4-1/2", 4" Pipe |
| Description/Special Features | Direct Burial |
| Package Quantity | 1 |
| For Use With | Copper Conductors, Ground Rods, Pipes, Rebar |
| Grounding Wire Size | 1/0 AWG to 250 kcmil STR, 2/0 AWG to 250 kcmil SOL |
| For Maximum Pipe Size | 4 in |
| For Maximum Ground Conductor Wire Size | 250 kcmil |
| Accessory Type | Ground Clamp |
| Overall Length | 1-13/16 in |
| For Minimum Ground Conductor Wire Size | 2/0 AWG SOL |
| For Rod Dia. | 4 to 4-1/2 in |
| For Minimum Pipe Size | 4 in |
| Overall Height | 6-3/8 in |
| Torque | 240 in-lb |
| Overall Width | 5-13/16 in |
| Application | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Dimension - L Length Overall mm | 46 mm |
| U Bolt Type | 261 |
| Dimension - Width fraction | 5-7/8 in |
| Dimension - Width inch | 5.81 in |
| Standards - Industry Standards Met | UL467 |
| Conductor - Copper Solid Size Range | 2/0 AWG-250 Kcmil |
| Conductor Type | CU C Solid-SizeCU C Str-SizeCU Tube Std-SizeRod-Size |
| Dimension - Height inch | 6.38 in |
| Dimension - B Length inch | 4-1/2 in |
| Dimension - Outside Diameter inch | 4-1/2 in |
| UL Listed | Yes |
| Dimension - Width mm | 148 mm |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Certification - UL Listed Direct Burial | Yes |
| Plating Type | Bright Dipped |
| Conductor - Copper Tube Std Size Range | 4 IPS IPS |
| Material - Hardware | DURIUMâ„¢ Silicon Bronze |
| Dimension - Height fraction | 6-3/8 in |
| Conductor - Pipe or Round Tube Size | 4 in |
| Conductor - Copper Str Size Range | 1/0 -250 kcmil |
| Conductor - Rod Size | 4.0 - 4.5 in |
| Conductor - Copper Tube Std Size | 4 IPS IPS |
| Plated | N |
| Industry Standard(s) | UL467 |
| Dimension - Length Overall inch | 1.81 in |
| Conductor - Copper Str Size | 1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Solid Size | 2/0 AWG;3/0 AWG;4/0 AWG |
