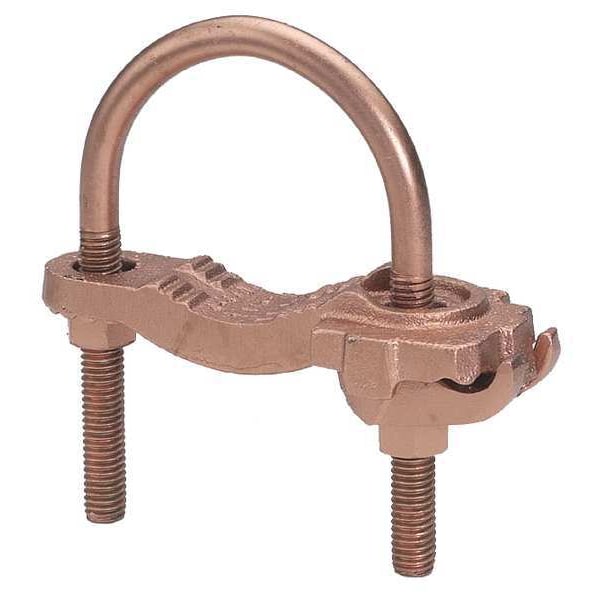

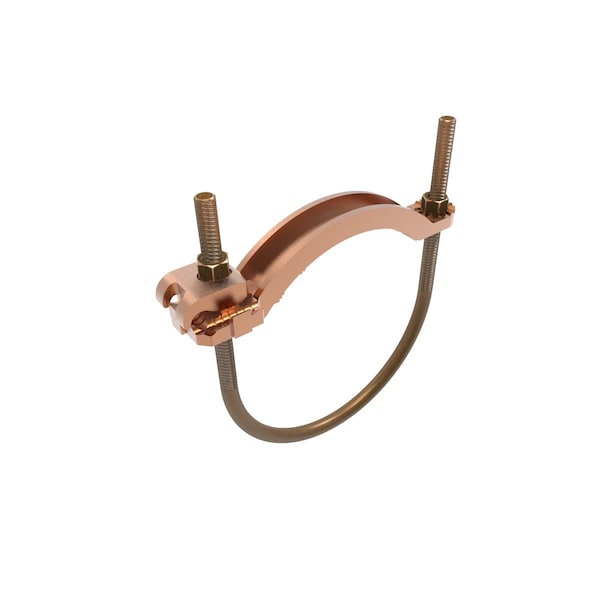

Pipe Ground Clamp, 4AWG, 7.5In, Type: COMMERCIAL
| Item | Grounding Connector |
|---|---|
| Item - Grounding Connector | Grounding Connector |
| Type - Grounding Connector | Mechanical |
| Type | COMMERCIAL |
| Wire Size - Grounding | 4 to 4/0 AWG |
| Material | Copper |
| Grounding Wires Connected To | 4 in to 5 in Pipe |
| Standards | UL Listed Direct Burial, UL467 |
| Material - Grounding Connector | Copper Alloy |
| Number of Wires - Grounding | 1 |
| Conductor Size | 4/0 AWG to 4 AWG |
| Rod Dia. | 4" to 5" Pipe |
| Material of Construction | Copper Alloy |
| Package Quantity | 1 |
| Description/Special Features | Direct Burial |
| For Use With | Copper Conductors, Ground Rods, Pipes |
| Grounding Wire Size | 4 to 4/0 AWG SOL, 4 to 4/0 AWG STR |
| Overall Length | 1-3/4 in |
| For Maximum Ground Conductor Wire Size | 4/0 AWG |
| Overall Width | 7-1/2 in |
| For Minimum Ground Conductor Wire Size | 4 AWG |
| For Rod Dia. | 4 to 5 in |
| For Maximum Pipe Size | 5 in |
| Accessory Type | Ground Clamp |
| Overall Height | 7-1/2 in |
| Torque | 240 in-lb |
| For Minimum Pipe Size | 4 in |

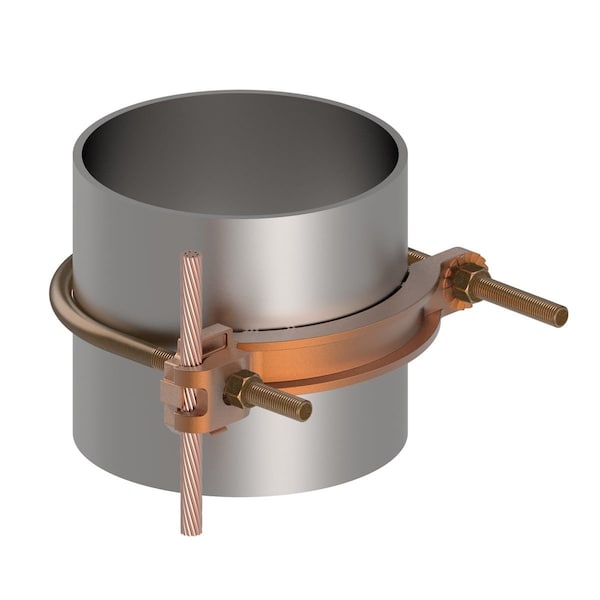

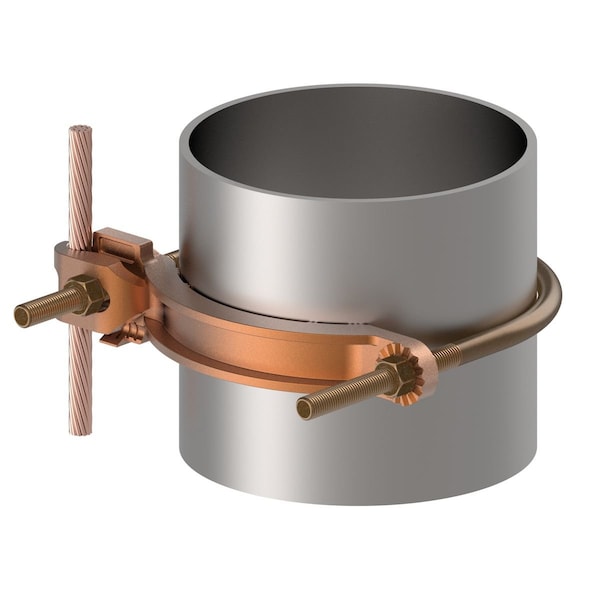

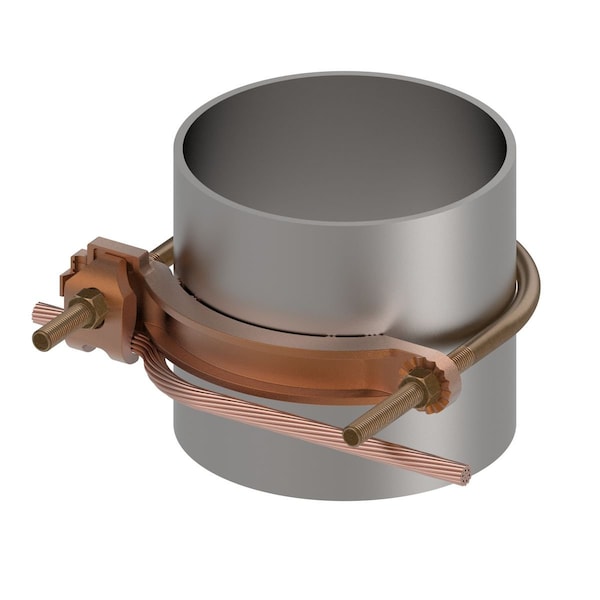

| Application | For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes |
| U Bolt Type | 422 |
| Dimension - Outside Diameter inch | 5.56 in |
| Standards - Industry Standards Met | UL467 |
| Dimension - Width mm | 191 mm |
| Dimension - Length Overall inch | 1-3/4 in |
| Material - Hardware | DURIUMâ„¢ Silicon Bronze |
| Conductor - Copper Str Size Range | 36620 |
| Conductor - Copper Tube Std Size | 4, 5 |
| Dimension - Width inch | 7-1/2 in |
| Plated | N |
| Dimension - Height inch | 7-1/2 in |
| Conductor - Copper Solid Size Range | 4 AWG - 4/0 AWG |
| Certification - UL Listed Direct Burial | Yes |
| Installation Torque Recommended in-lb | 200 LBS/in |
| Conductor - Copper Str Size | 4;3;2;1;1/0;2/0;3/0;4/0 |
| UL Listed | Yes |
| Industry Standard(s) | UL467 |
| Dimension - B Length inch | 1-3/4 in |
| Plating Type | Unplated |
| Conductor - Pipe or Round Tube Size | 4 - 5 in |
| Conductor - Copper Tube Std Size Range | 45021 |
