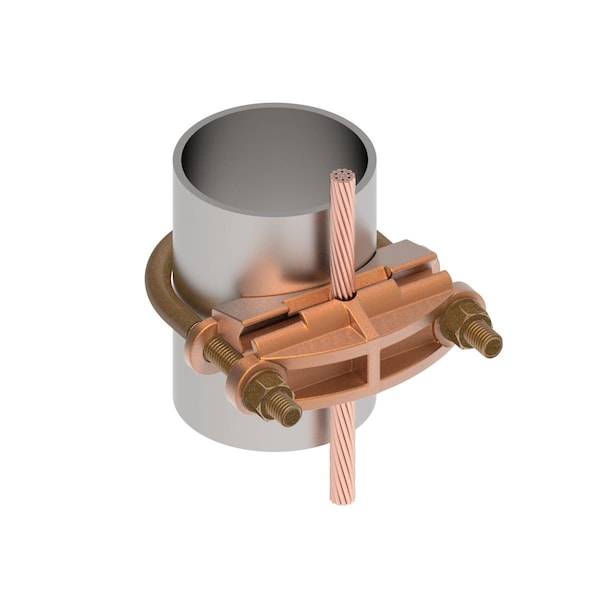

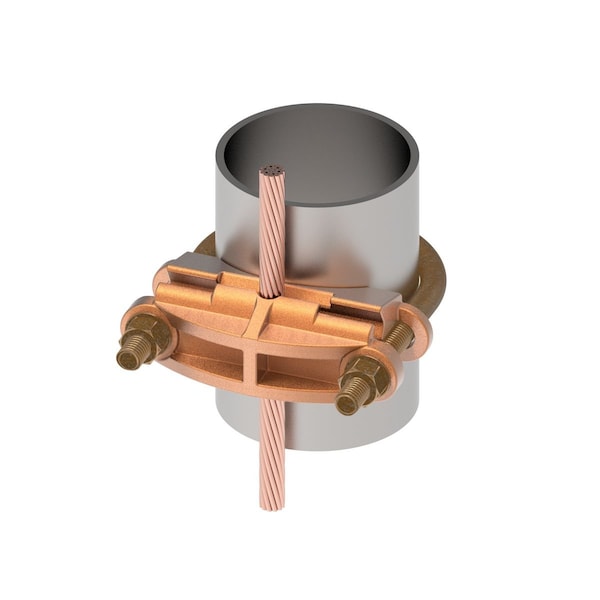

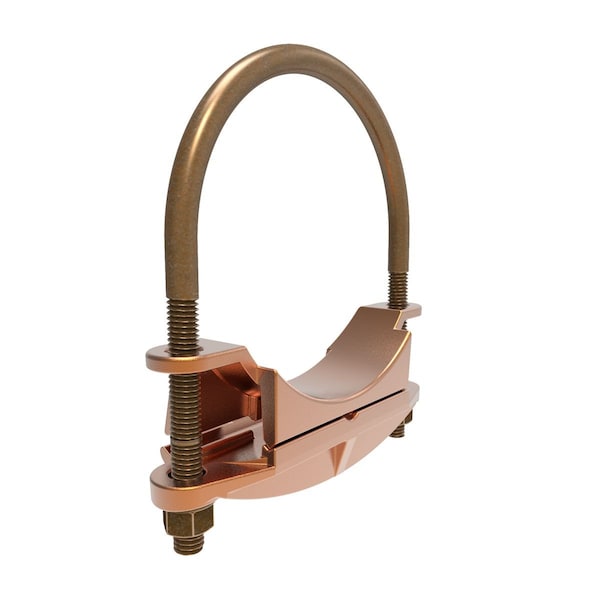

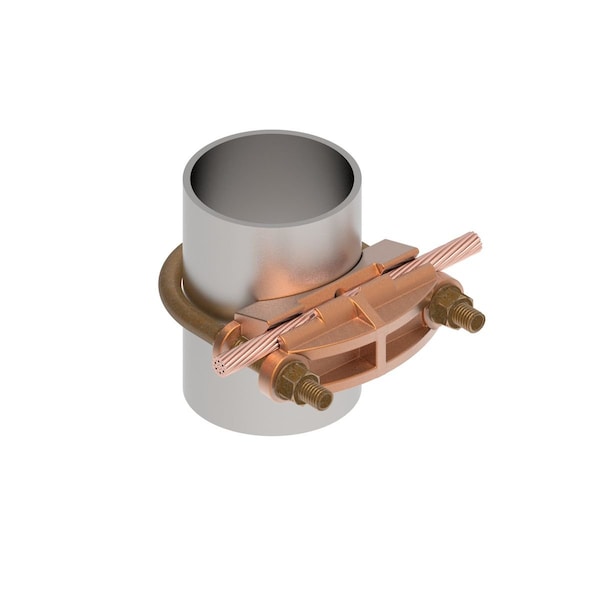

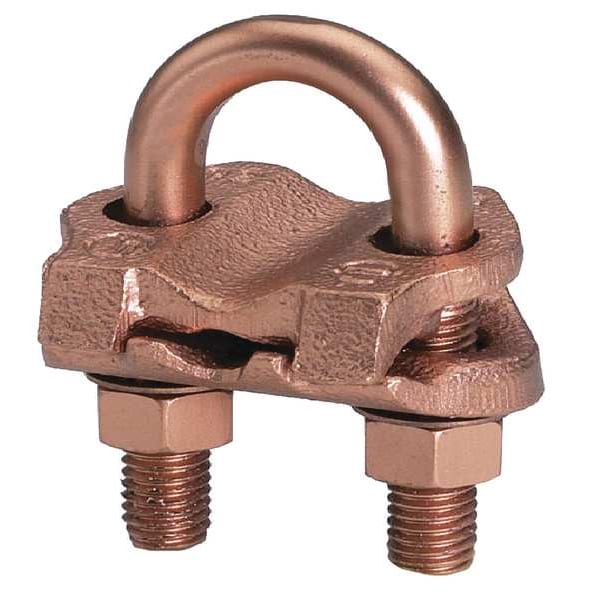

Pipe Ground Clamp, 5AWG, 5In
| Item | Grounding Connector |
|---|---|
| Item - Grounding Connector | Grounding Connector |
| Type | COMMERCIAL |
| Type - Grounding Connector | Mechanical |
| Wire Size - Grounding | 4 to 2/0 AWG |
| Material | Copper |
| Standards | UL Listed Direct Burial, UL467 |
| Grounding Wires Connected To | 2 1/2 in Pipe, 2 1/2 in to 2 7/8 in Rod |
| Material - Grounding Connector | Copper Alloy |
| Number of Wires - Grounding | 1 |
| Material of Construction | Copper Alloy |
| Conductor Size | 2/0 AWG to 4 AWG |
| Rod Dia. | 2-1/2" to 2-7/8" Rod, 2-1/2" Pipe |
| For Use With | Copper Conductors, Ground Rods, Pipes, Rebar |
| Description/Special Features | Direct Burial |
| Package Quantity | 1 |
| Grounding Wire Size | 4 to 3/0 AWG SOL, 5 to 2/0 AWG STR |
| Overall Length | 1-9/16 in |
| For Rod Dia. | 2-1/2 to 2-7/8 in |
| For Minimum Pipe Size | 2-1/2 in |
| Overall Width | 4-3/16 in |
| Torque | 240 in-lb |
| For Maximum Ground Conductor Wire Size | 2/0 AWG STR |
| Overall Height | 5 in |
| For Maximum Pipe Size | 2-1/2 in |
| Accessory Type | Grounding Connector |
| For Minimum Ground Conductor Wire Size | 4 AWG SOL |
| Application | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Installation Torque Recommended in-lb | 240 LBS/in |
| Conductor Type | CU C Solid-SizeCU C Str-SizeCU Tube Std-SizeRod-Size |
| Item Type | 3A |
| Certification - UL Listed Direct Burial | Yes |
| Dimension - Outside Diameter inch | 2.88 in |
| Conductor - Copper Tube Std Size | 2 1/2 IPS IPS |
| Conductor - Rod Size | 2.5 in-2.88 in |
| U Bolt Type | 266 |
| UL Listed | Yes |
| Conductor - Rod Size Range | 2-1/2 to 2-7/8 in |
| Installation Torque Recommended Run in-lb | 240 Lb-in |
| Plating Type | Bright Dipped |
| Dimension - Height fraction | 5 in |
| Dimension - Width mm | 106 mm |
| Dimension - L Length Overall mm | 40 mm |
| Plated | N |
| Conductor - Pipe or Round Tube Size Range | 2-1/2 in |
| Dimension - Width inch | 4.19 in |
| Dimension - Width fraction | 4-1/4 in |
| Conductor - Copper Solid Size Range | 4 AWG-3/0 AWG |
| Standards - Industry Standards Met | UL467 |
| Conductor - Copper Tube Std Size Range | 2 1/2 IPS IPS |
| Material - Hardware | DURIUMâ„¢ Silicon Bronze |
| Industry Standard(s) | UL467 |
| Conductor - Copper Str Size | 2/0 AWG |
| Dimension - B Length inch | 3-1/4 in |
| Conductor - Copper Solid Size | 4 AWG |
| Dimension - Height inch | 5 in |
| Conductor - Copper Str Size Range | 5 AWG-2/0 AWG |
| Dimension - Length Overall inch | 1.56 in |
