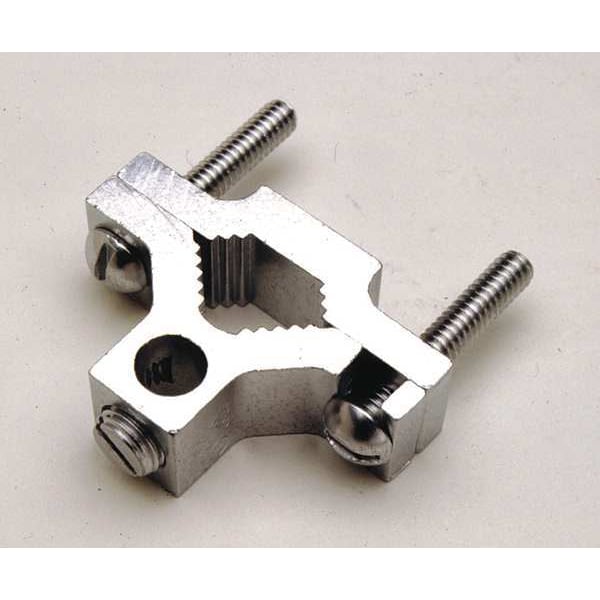

Pipe Ground Clamp, 6AWG, 3.75In
| Item | Grounding Connector |
|---|---|
| Item - Grounding Connector | Grounding Connector |
| Type - Grounding Connector | Mechanical |
| Type | COMMERCIAL |
| Wire Size - Grounding | 6 AWG to 250 kcmil |
| Material | Aluminum |
| Grounding Wires Connected To | 1 1/4 in to 2 in Pipe |
| Standards | UL Listed, UL467 |
| Material - Grounding Connector | Aluminum |
| Number of Wires - Grounding | 1 |
| Rod Dia. | 1-1/4" to 2" Pipe |
| Material of Construction | Aluminum |
| Conductor Size | 250 kcmil to 6 AWG |
| Package Quantity | 1 |
| For Use With | Aluminum Conductor, Conduit, Copper Conductor, Pipe, Water Pipe |
| Description/Special Features | Hex Socket Steel Screw |
| Grounding Wire Size | 6 AWG to 250 kcmil STR, 6 to 4/0 AWG SOL |
| Torque | 180 in-lb |
| Accessory Type | Grounding Connector |
| For Maximum Pipe Size | 2 in |
| Overall Width | 13/16 in |
| For Minimum Ground Conductor Wire Size | 6 AWG |
| For Minimum Pipe Size | 1-1/4 in |
| Overall Length | 3-3/4 in |
| For Maximum Ground Conductor Wire Size | 250 kcmil |
| Application | For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit |
| Material Type - Screw | Steel |
| Dimension - Width inch | 0.81 in |
| Dimension - Width fraction | 13/16 in |
| Dimension - Hole Size inch | 0.62 in |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Conductor - AL Str Size | 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Industry Standard(s) | UL467 |
| Installation Torque Recommended in-lb | 180 LBS/in |
| Standards - Industry Standards Met | UL467 |
| Conductor Type | AL C Str-SizeCU C Solid-SizeCU C Str-SizePipe or Tube Round-Run |
| Conductor - Copper Str Size | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil |
| Conductor - Copper Solid Size | 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Plating Type | Tin |
| Temperature Rating | 194 |
| Dimension - Length Overall inch | 3-3/4 in |
| Conductor - Pipe or Round Tube Run | 1 1/2, 1 1/4, 2 |
| Dimension - Hole Size mm | 16 mm |
| Voltage - Maximum | 600 V |
| Conductor - AL Str Size Range | 6 AWG-250 kcmil |
| UL Listed | Yes |
| Conductor - Copper Solid Size Range | 6 AWG-4/0 AWG |
| Certification - CSA Approved | Yes |
| Dimension - L Length Overall mm | 95 mm |
| Conductor - Pipe or Round Tube Run Range | 1 1/4 -2 |
| Conductor - Copper Str Size Range | 6 AWG-250 kcmil |
| Dimension - Width mm | 21 mm |
| Hex Size | 2023-05-16 |
| Plated | Y |
| Dimension - Pad Width inch | 0.81 in |
