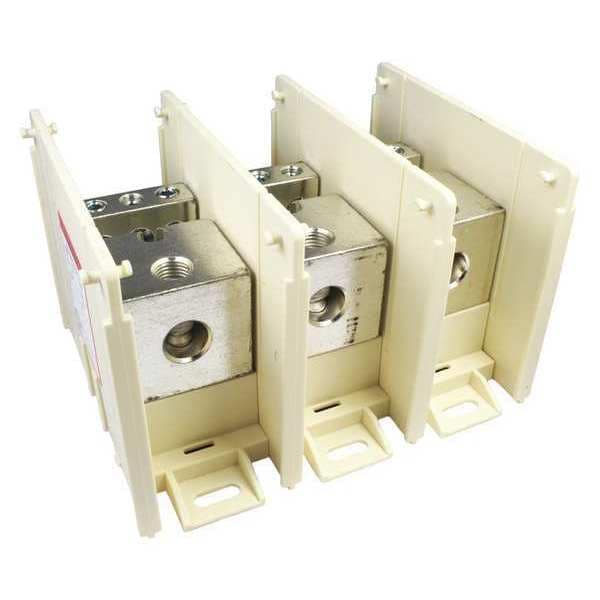

Bloque de distribución de energía, 14 a 2/0 AWG
| Item | Power Distribution Block |
|---|---|
| Number of Poles | 3 |
| Max. Amps | 175 |
| Primary Connections/Pole | 1 |
| Primary Wire Range (AWG) | 14 to 2/0 AWG |
| Secondary Connection/Pole | 6 |
| Secondary Wire Range (AWG) | 14 to 2 AWG |
| Power Distribution Block Design | Open |
| Voltage Rating | 1000V AC/DC |
| Standards | cULus Certified |
| Housing Material | Nylon |
| For Conductor Material | Aluminum, Copper |
| Load Side Connection Type | Lug |
| Housing Color | Natural |
| Number of Circuits | 3 |
| For Load Copper Wire Size - Maximum | 2 AWG |
| Line Side Connection Type | Lug |
| Line Side Stud Size | Not Applicable |
| Line Connections/Pole | 1 |
| For Load Copper Wire Size - Minimum | 14 AWG |
| Maximum Voltage | 600 V AC/DC |
| For Line Aluminum Wire Size - Maximum | 2/0 AWG |
| Secondary Wire Range | 14 to 2 AWG |
| UL 94 Flammability Rating | V-0 |
| Maximum Operating Temperature | 194 deg F |
| For Line Copper Wire Size - Minimum | 14 AWG |
| For Line Aluminum Wire Size - Minimum | 14 AWG |
| Primary Wire Range | 14 to 2/0 AWG |
| Maximum Current - Copper Conductor | 175 A |
| Special Features | Provided Capability to Create as Many Poles as Required, Up to 30 Tap Conductor Accommodated |
| For Load Aluminum Wire Size - Minimum | 14 AWG |
| Maximum Current - Aluminum Conductor | 175 A |
| Terminal Material | Aluminum, Copper |
| Overall Width | 4.83 in |
| For Line Copper Wire Size - Maximum | 2/0 AWG |
| Overall Length | 6.1 in |
| Load Side Stud Size | Not Applicable |
| Overall Depth | 3.88 in |
| Load Connections/Pole | 6 |
| For Load Aluminum Wire Size - Maximum | 2 AWG |
| RoHS Compliant | Yes |
| Application | VERSI-POLE Power Distribution Blocks are designed to provide modular solutions to power distribution applications. |
| Features | Insulated |
| Max. Operating Temp. | 194°F |
| Material | Aluminum |
| Plated | Yes |
| Type | BDB |
| Insulation | Y |
| Temperature Rating | 194 |
| Plating Type | Tin |
| Conductor Type | AL C Str-RunCU C Str-RunAL C Str-TapCU C Str-Tap |
| Voltage - Maximum | 600 V |
| Trade Name | VERSIPOLEâ„¢ |
| Connector Type | Power Distribution Block |
| Rating - Minimum Voltage | 600 |
| Certification - cULus | Yes |
| Package Quantity | 1 |
