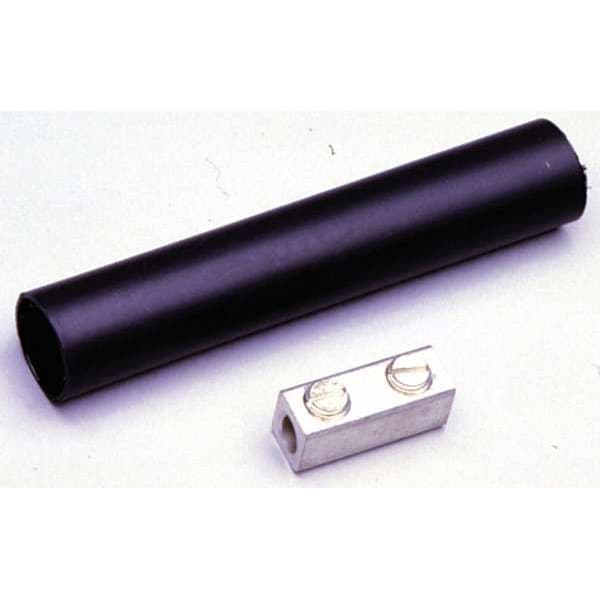

Kits de empalme, de 8 a 2 AWG, 194F, Negro, 600V.
| Item | Splice Kit |
|---|---|
| Wire Range | 8 to 2 AWG |
| Container Type | Plastic Clam Shell |
| Material | Aluminum |
| Temp. Range | 32 Degrees to 194 Degrees F |
| Includes | (2) Screws |
| Color | Black |
| Max. Voltage | 600 V |
| Overall Length | 5 in |
| Max. Temp. | 194 deg F |
| Voltage Rating | 600V |
| Standards | CSA Certified, UL 468A-468B, UL Listed |
| Connector Type | Splice;Reducer |
| Screw Material | Aluminum |
| Minimum Operating Temperature | 32 deg F |
| Termination Style | Heat Shrink |
| Maximum Wire Size | 2 AWG |
| For Maximum Cable OD | 1/2 in |
| For Wire Type | Aluminum Wire, Copper Wire |
| For Conductor Type | Copper, Aluminum |
| Maximum Operating Temperature | 194 deg F |
| For Conductor Material | Copper, Aluminum |
| Special Features | Connector Is Installed With Common Installation Tools, Constructed From High Strength, Low Contact Resistance And Reduces The Effects Of Galvanic Corrosion, Providing A Positive Seal Against Moisture Egress, The AMS Splice Is Dual Rated |
| Minimum Wire Size | 8 AWG |
| Heat Shrink Material | Cross-Linked Polyolefin |
| Screw Finish | Tin Plated |
| Resin Material | Not Applicable |
| Tubing Wall Type | Heavy Wall |
| Body Material | Aluminum |
| Resistance Properties | Corrosion-Resistant |
| RoHS Compliant | Yes |
| Contact Material | Aluminum |
| Compatible with Product Type | Power Cables, Motor Connections, Pool Wiring |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| Body Finish | Tin Plated |
| Plated | N |
| Conductor - Copper Str Size Range | 8 AWG-2 AWG |
| Certification - CSA Approved | Yes |
| Standards - Industry Standards Met | UL468A-468B |
| Insulation | Y |
| Hex Size | Slot |
| Conductor - Copper Solid Size | 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Conductor Size | 8-2 AWG |
| Temperature Rating | 194° F |
| Plating Type | Unplated |
| Application | For All Aluminum or Copper/Aluminum Combinations |
| Conductor - Copper Solid Size Range | 8 AWG-4 AWG |
| Physical Attribute - Screw Type | Slot |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Str Size | 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - AL Str Size Range | 8 AWG-2 AWG |
| Conductor Type | AL C Str-SizeCU C Str-Size |
| UL Listed | Yes |
| Conductor - AL Str Size | 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG |
| Dimension - Length Overall inch | 5 in |
| Dimension - L Length Overall mm | 127 mm |
| Material - Hardware | Aluminum |
| Type | AGSKIT, Above Grade |
| Industry Standard(s) | UL468A-468B |
| Package Quantity | 1 |
