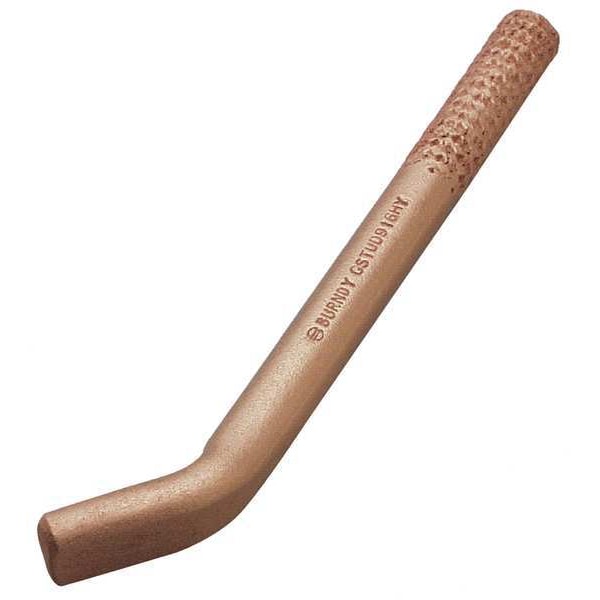

Tornillo de puesta a tierra de acero, calibre 1/0, 7.16 pulgadas.
| Item | Weld On Grounding Stud |
|---|---|
| Material | Steel |
| Item - Grounding Connector | Weld On Grounding Stud |
| Grounding Wires Connected To | 9/16 in Rod |
| Conductor Size | 1/0 AWG |
| Type | COMMERCIAL |
| Wire Size - Grounding | 1/0 AWG |
| Material - Grounding Connector | Low Carbon Hot Rolled Steel |
| Type - Grounding Connector | Mechanical |
| Material of Construction | Low Carbon Hot Rolled Steel |
| Standards | UL Listed Direct Burial, UL467 |
| Grounding Wire Size | 1/0 AWG |
| For Minimum Ground Conductor Wire Size | 1/0 AWG |
| For Maximum Ground Conductor Wire Size | 1/0 AWG |
| Accessory Type | Grounding Connector |
| For Rod Dia. | 5/8 in |
| Description/Special Features | Structural Steel Grounding Connector |
| Number of Wires - Grounding | 1 |
| For Use With | Structural Steel |
| Overall Length | 5-11/16 in |
| Certification - CSA Approved | No |
| Dimension - D inch | 1-1/4 in |
| Conductor - Rod Size Range | 5/8 in |
| Conductor - Copper Str Size | 36526 |
| Dimension - L Length Overall mm | 144 mm |
| Conductor Type | Rod-SizeCU C Str-Size |
| Dimension - Length Overall inch | 5.68 in |
| Plated | Y |
| Dimension - B Length inch | 0.57 in |
| Dimension - Ground Rod Size | 5/8 in |
| Trade Name | VERSITAILâ„¢ |
| Application | For Compression Connectors And Mechanical Connectors |
| Certification - UL Listed Direct Burial | No |
| Conductor - Rod Size | 5/8 in |
| Conductor - Copper Str Size Range | 1/0 AWG |
| UL Listed | No |
| Plating Type | Nickel |
| Dimension - B Length fraction | 53/93 in |
| Physical Attribute - Tongue Angle | 45 Degree |
| Package Quantity | 1 |
