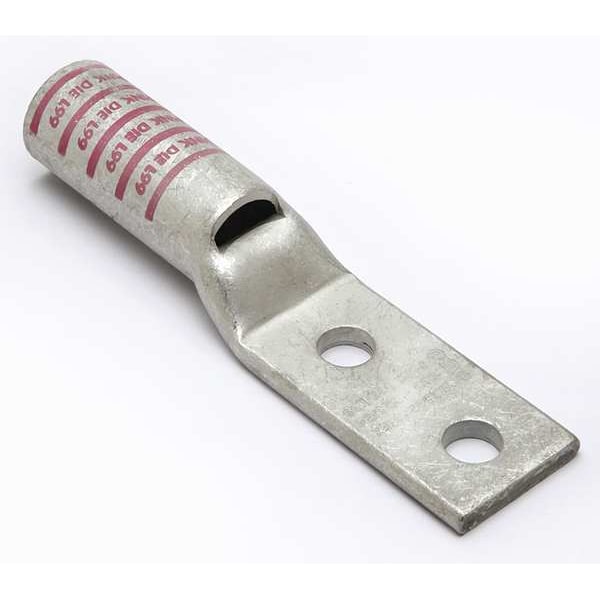

Two Hole Lug Compress Conct, 500 kcmil
| Cable Size | 500 kcmil |
|---|---|
| Connector Type | Long Barrel |
| Width | 1.62 in |
| Material | Copper |
| Length | 6.72 in |
| Color Code | Pink |
| Tongue Style | Standard |
| Die Code | L99 |
| Hole Center to Center | 1.75 in |
| Barrel Length | Long |
| Item | Two-Hole Lug Compression Connector |
| Peep Hole | Yes |
| Stud Size | 1/2 in |
| Plate Material | Electro Tin |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Hole Center to End | 0.62 in |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Overall Length | 6.72 in |
| Overall Width | 1.63 in |
| Application | For Flex Conductors |
| Length (Straight Wireway) | 6.72 in |
| For Stud Size | 1/2 in |
| Termination Style | Crimp |
| Barrel Size | Long |
| Strip Length | 2-7/8 in |
| Special Features | Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion, Tin-Zinc Plated for Battery Connectors or Other Heavy Duty Equipment, to Reduce the Corrosion From Lead/Acid Batteries, Uninsulated Copper Compression Terminal, Tin-Zinc Plated, Up to 35 Kv |
| Tongue Angle | Straight |
| For Stranded Copper Wire Size - Maximum | 550 kcmil |
| Maximum Operating Temperature | 194 deg F |
| Hole Size | 0.53 in |
| Tongue Width | 1.62 in |
| Tongue Thickness | 0.27 in |
| RoHS Compliant | Yes |
| Inspection Hole | Yes |
| For Wire Size | 500 kcmil |
| Maximum Voltage | 35 kV AC |
| Tongue Length | 1.27 in |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| Barrel Outside Diameter | 1.25 in |
| For Wire Type | Stranded |
| For Stranded Copper Wire Size - Minimum | 500 kcmil |
| Barrel Style | Skived |
| Rating - Minimum Voltage | 600 |
| Rating - KVA | 35 kV |
| Dimension - Outside Diameter inch | 1-1/4 in |
| Dimension - Bolt Hole Size inch | 0.53 in |
| Conductor - Copper Flex H Size Range | 500 / 550 kcmil |
| Feature - Barrel Type | Long |
| Voltage - Maximum | 35000 |
| Dimension - L Length Overall mm | 171 mm |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - N inch | 0.62 in |
| Physical Attribute - Number of Holes | 2 |
| Conductor - Copper Flex M Size | 500 |
| Conductor - Copper Flex G Size Range | 550 kcmil |
| Plating Type | Tin Electro Plated |
| Conductor - Material | Copper |
| Wire Size | 500-550 KCMIL |
| Trade Name | HYLUGâ„¢ |
| Dimension - Bolt Size fraction | 44993 |
| Dimension - Length Overall inch | 6.72 in |
| Conductor - Copper Str Size Range | 500 kcmil |
| Conductor - Copper DLO Size Range | 535 kcmil |
| Conductor Size | 500-550 KCMIL |
| Conductor - Copper Flex K Size Range | 500 kcmil |
| Dimension - Hole Size mm | 14 mm |
| Plated | Y |
| Dimension - Stud Size fraction | 1 to 2 |
| Dimension - Diameter Min Size inch | 3.02 in |
| UL Listed | Yes |
| Dimension - Hole Size fraction | 1 to 2 |
| Certification - CSA Approved | Yes |
| Conductor - Copper DLO Size | 535.3 (1325/#24) |
| Voltage Rating | 35 kV |
| Dimension - Length Side B inch | 6.72 in |
| Dimension - Bolt Size inch | 0.5 |
| Dimension - Z inch | 0.65 in |
| Conductor - Copper Flex K Size | 500 |
| Die Index | L99 |
| Dimension - Hole Size inch | 0.56 |
| Conductor - Copper Flex I Size | 500 |
| Conductor - Copper Flex G Size | 500 |
| Finish Type | Tin-Plated |
| Conductor - Copper Flex H Size | 500 |
| Industry Standard(s) | UL 486A-486B |
| Conductor Type | FLEX |
| Conductor - Copper Str Size | 500 kcmil |
| Feature - Barrel Style | Skived |
| Dimension - Stud Size inch | 1 to 2 |
| Dimension - Pad Width inch | 1.62 in |
| Type | Barrel Narrow Tongue, YAZ-2-NTFX |
| Dimension - B Length inch | 2.81 in |
| Conductor - Copper Flex I Size Range | 500 / 550 kcmil |
| Dimension - B Length fraction | 2-13/16 in |
| Dimension - Strip Length inch | 39485 |
| Package Quantity | 1 |
