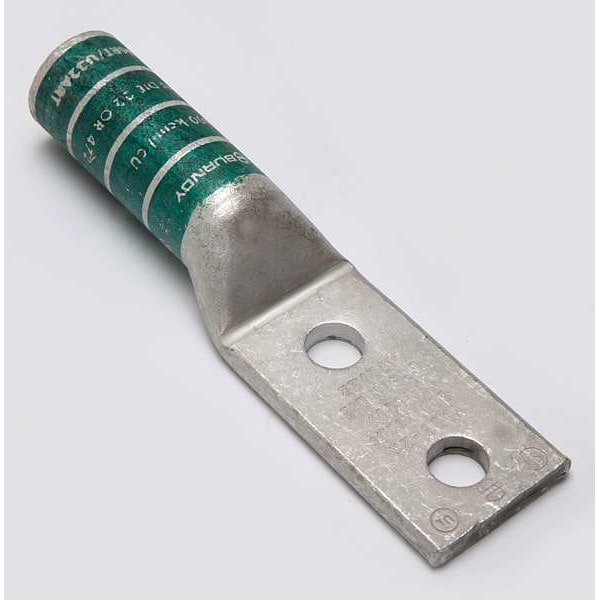

Conector de compresión de dos orificios para terminal de ojal, 600 kcmil, Ancho: 1.69 pulgadas.
| Cable Size | 600 kcmil |
|---|---|
| Connector Type | Long Barrel |
| Width | 1.74 in |
| Material | Copper |
| Length | 6.59 in |
| Color Code | Green |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Peep Hole | No |
| Tongue Style | Standard |
| Item | Two-Hole Lug Compression Connector |
| Plate Material | Electro Tin |
| Die Code | 22, 472 |
| Hole Center to End | 0.63 in |
| Stud Size | 1/2 in |
| Hole Center to Center | 1.75 in |
| Barrel Length | Long |
| Overall Width | 1.74 in |
| Application | For Code Conductor |
| Overall Length | 6.59 in |
| Length (Straight Wireway) | 6.59 in |
| RoHS Compliant | Yes |
| For Wire Size | 600 kcmil |
| Maximum Operating Temperature | 194 deg F |
| Barrel Size | Long |
| Hole Size | 0.56 in |
| For Stranded Copper Wire Size - Maximum | 600 kcmil |
| For Stranded Copper Wire Size - Minimum | 600 kcmil |
| Inspection Hole | No |
| For Wire Type | Stranded |
| Special Features | Terminal |
| Maximum Voltage | 35 kV AC |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Barrel Style | Chamfered |
| For Stud Size | 1/2 in |
| Tongue Angle | Straight |
| Tongue Thickness | 0.27 in |
| Barrel Outside Diameter | 1.19 in |
| Tongue Length | 1.27 in |
| For Conductor Material | Copper |
| Strip Length | 2-3/4 in |
| Tongue Width | 1.74 in |
| Type | Tin Plated, Long Barrel |
| Conductor - Material | Copper |
| Conductor Size | 600 KCMIL |
| Conductor - Copper Str Size | 600 kcmil |
| Dimension - Strip Length inch | 38020 |
| Die Index | 22;472 |
| Dimension - Stud Size inch | 1 to 2 |
| Rating - Minimum Voltage | 600 |
| Plating Type | Tin |
| Voltage - Maximum | 35000 |
| Dimension - Outside Diameter inch | 1.19 in |
| Physical Attribute - Tongue Type | Standard |
| Dimension - Z inch | 0.64 in |
| Dimension - B Length fraction | 2-11/16 in |
| Conductor - Copper Str Size Range | 600 kcmil |
| Dimension - Hole Size inch | 0.56 in |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Length Overall inch | 6.59 in |
| Trade Name | HYLUGâ„¢ |
| Dimension - L Length Overall mm | 167 mm |
| Dimension - Pad Width inch | 1.74 in |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - Hole Size fraction | 1 to 2 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Dimension - N inch | 0.63 in |
| Dimension - Bolt Size fraction | 1 to 2 |
| Finish Type | Tin-Plated |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Stud Size fraction | 1 to 2 |
| Conductor Type | CODE |
| Feature - Barrel Style | Chamfered |
| Plated | Y |
| Voltage Rating | 35 kV |
| Industry Standard(s) | UL468A-468B |
| Dimension - B Length inch | 2.69 in |
| Rating - KVA | 35 kV |
| Dimension - Hole Size mm | 14 mm |
| UL Listed | Yes |
| Certification - CSA Approved | Yes |
| Dimension - Bolt Size inch | 0.5 |
| Package Quantity | 1 |
