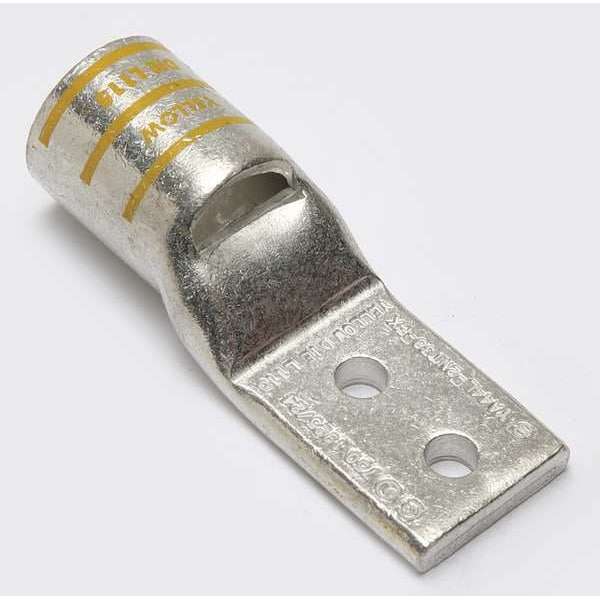

Two Hole Lug Compress Conct, 777 kcmil
| Cable Size | 750 kcmil |
|---|---|
| Connector Type | Standard Barrel |
| Width | 1.63 in |
| Material | Copper |
| Length | 5.74 in |
| Color Code | Yellow |
| Peep Hole | Yes |
| Die Code | L115 |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Hole Center to End | 0.63 in |
| Item | Two-Hole Lug Compression Connector |
| Plate Material | Electro Tin |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Barrel Length | Short |
| Stud Size | 1/2 in |
| Hole Center to Center | 1.75 in |
| Tongue Style | Narrow |
| Overall Length | 5.74 in |
| Application | For Flex Conductor |
| Overall Width | 1.63 in |
| Length (Straight Wireway) | 5.74 in |
| Barrel Style | Chamfered |
| For Stranded Copper Wire Size - Maximum | 777 kcmil |
| Tongue Length | 1.28 in |
| Special Features | Terminal |
| Maximum Voltage | 35 kV AC |
| Strip Length | 1-5/8 in |
| Maximum Operating Temperature | 194 deg F |
| For Wire Size | 750 kcmil |
| For Stranded Copper Wire Size - Minimum | 750 kcmil |
| Tongue Width | 1.63 in |
| For Wire Type | Stranded |
| Tongue Angle | Straight |
| Inspection Hole | Yes |
| Barrel Size | Standard |
| Contact Finish | Tin |
| Barrel Outside Diameter | 1.5 in |
| Termination Style | Crimp |
| RoHS Compliant | Yes |
| For Stud Size | 1/2 in |
| For Conductor Material | Copper |
| Hole Size | 0.52 in |
| Conductor - Copper Flex K Size Range | 750 |
| Dimension - Outside Diameter inch | 1-1/2 in |
| Rating - Minimum Voltage | 600 |
| Dimension - B Length fraction | 1-11/16 in |
| Finish Type | Tin-Plated |
| Dimension - Stud Size inch | 1 to 2 |
| Conductor - Copper Flex H Size Range | 750 |
| Conductor Type | FLEX |
| Industry Standard(s) | UL 486A-486B |
| Conductor - Copper DLO Size | 777.7 (1925/#24) |
| Conductor - Copper Str Size | 750 |
| Conductor - Copper Flex H Size | 750 |
| Dimension - Stud Size fraction | 1 to 2 |
| Conductor - Copper DLO Size Range | 777.7 (1925/#24) |
| Wire Size | 750 KCMIL |
| Dimension - Pad Width inch | 1.63 in |
| Conductor - Material | Copper |
| Dimension - Z inch | 0.65 in |
| Conductor - Copper Flex G Size | 750 |
| Conductor - Copper Flex G Size Range | 750 |
| Plating Type | Tin Electro Plated |
| UL Listed | Yes |
| Feature - Barrel Type | Standard |
| Conductor - Copper Flex I Size Range | 750 |
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Length Overall inch | 5.74 in |
| Dimension - B Length inch | 1.65 in |
| Trade Name | HYLUGâ„¢ |
| Dimension - Bolt Size inch | 0.5 |
| Conductor - Copper Flex K Size | 750 |
| Conductor - Copper Str Size Range | 750 |
| Dimension - Hole Size inch | 0.56 |
| Dimension - Strip Length inch | 39452 |
| Dimension - Hole Size mm | 14 mm |
| Physical Attribute - Number of Holes | 2 |
| Conductor Size | 750 KCMIL |
| Dimension - D inch | 3.03 in |
| Conductor - Copper Flex I Size | 750 |
| Dimension - L Length Overall mm | 146 mm |
| Rating - KVA | 35 kV |
| Die Index | L115 |
| Feature - Barrel Style | Chamfered |
| Voltage Rating | 35 kV |
| Certification - CSA Approved | Yes |
| Conductor - Copper Flex M Size | 750 |
| Dimension - N inch | 0.63 in |
| Physical Attribute - Tongue Angle | Straight |
| Plated | Y |
| Dimension - Bolt Size fraction | 1 to 2 |
| Dimension - Hole Size fraction | 1 to 2 |
| Voltage - Maximum | 35000 |
| Type | Barrel Narrow Tongue, YAV-L-NTFX |
| Package Quantity | 1 |
