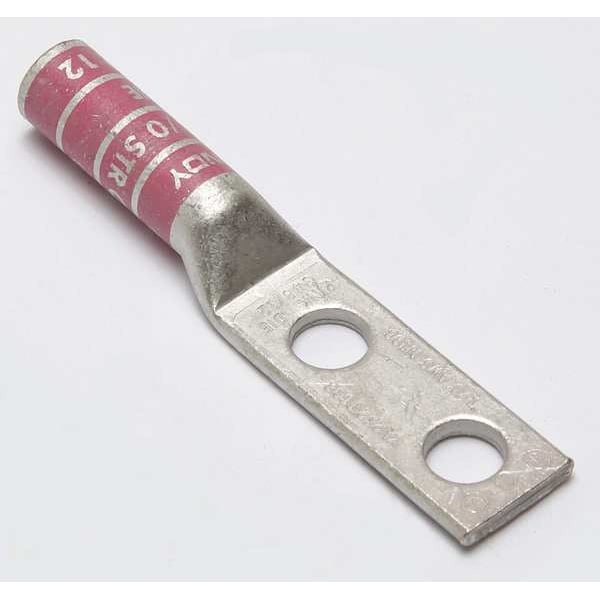

Conector de compresión de dos orificios para terminal de ojal, calibre 1/0 AWG.
| Cable Size | 1/0 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 3/4 in |
| Material | Tin-Electro Plated Copper |
| Length | 3.62 in |
| Color Code | Pink |
| Die Code | 12, 348 |
| Stud Size | 3/8 in |
| Tongue Style | Standard |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Hole Center to Center | 1 in |
| Hole Center to End | 0.41 in |
| Peep Hole | No |
| Barrel Length | Long |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Plate Material | Electro Tin |
| Item | Two-Hole Lug Compression Connector |
| Overall Length | 3.62 in |
| Overall Width | 3/4 in |
| Application | For Code Conductor |
| Length (Straight Wireway) | 3.62 in |
| For Stranded Copper Wire Size - Minimum | 1/0 AWG |
| Hole Size | 0.4 in |
| RoHS Compliant | Yes |
| For Conductor Material | Copper |
| Maximum Voltage | 35 kV AC |
| For Stud Size | 3/8 in |
| Barrel Size | Long |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Contact Finish | Tin |
| Barrel Style | Chamfered |
| Tongue Angle | Straight |
| Tongue Length | 0.84 in |
| Termination Style | Crimp |
| Maximum Operating Temperature | 194 deg F |
| Tongue Thickness | 0.12 in |
| Strip Length | 1-7/16 in |
| Special Features | Corrosion Resistant, Non-Insulated Construction |
| Inspection Hole | No |
| For Wire Type | Stranded |
| For Wire Size | 1/0 AWG |
| Barrel Outside Diameter | 0.51 in |
| Tongue Width | 3/4 in |
| Plated | Y |
| UL Listed | Yes |
| Plating Type | Tin Electro Plated |
| Certification - CSA Approved | Yes |
| Conductor - Copper Str Size | 36526 |
| Conductor Size | 1/0 AWG |
| Industry Standard(s) | UL468A-468B |
| Dimension - L Length Overall mm | 92 mm |
| Trade Name | HYLUGâ„¢ |
| Physical Attribute - Tongue Type | Standard |
| Conductor - Copper Str Navy Size Range | 100 (61) Navy |
| Type | Tin Plated, Long Barrel |
| Dimension - Pad Width inch | 3/4 in |
| Dimension - Stud Size inch | 44993 |
| Dimension - Thread Size | 44993 |
| Dimension - Bolt Size fraction | 44993 |
| Dimension - Outside Diameter inch | 0.51 in |
| Dimension - Length Overall inch | 3.62 in |
| Dimension - Stud Size fraction | 2023-03-08 |
| Standards - Industry Standards Met | UL468A-468B |
| Feature - Barrel Style | Chamfered |
| Conductor - Copper Str Size Range | 36526 |
| Dimension - D inch | 1.84 in |
| Dimension - Hole Size inch | 0.4 in |
| Conductor - Material | Copper |
| Conductor - Copper Solid Size | 1/0 AWG |
| Conductor - Copper Str Navy Size | 100 (61) Navy |
| Temperature Rating | 194 |
| Voltage - Maximum | 35000 |
| Dimension - Hole Size mm | 10 mm |
| Dimension - B Length inch | 1.38 in |
| Feature - Barrel Type | Long |
| Finish Type | Tin-Plated |
| Dimension - N inch | 0.41 in |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Physical Attribute - Tongue Angle | Straight |
| Conductor Type | CODE |
| Dimension - Strip Length inch | 42376 |
| Dimension - Hole Size fraction | 2023-03-08 |
| Conductor - Copper Solid Size Range | 1/0 AWG |
| Die Index | 12 |
| Physical Attribute - Number of Holes | 2 |
| Dimension - Bolt Size inch | 0.38 |
| Rating - Minimum Voltage | 600 |
| Rating - KVA | 35 kV |
| Voltage Rating | 35 kV |
| Dimension - B Length fraction | 1-3/8 in |
| Dimension - Z inch | 0.43 in |
| Package Quantity | 1 |
