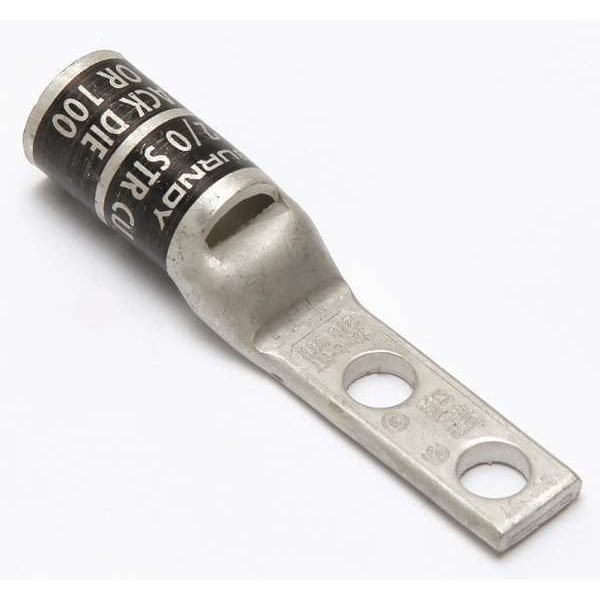

Conector comprimido de ojal de dos agujeros, 2/0 AWG
| Cable Size | 2/0 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.48 in |
| Material | Copper |
| Length | 2.66 in |
| Color Code | Black |
| Barrel Length | Short |
| Stud Size | 1/4 in |
| Plate Material | Electro Tin |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Hole Center to End | 1/4 in |
| Die Code | 13 |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Tongue Style | Narrow |
| Item | Two-Hole Lug Compression Connector |
| Peep Hole | Yes |
| Hole Center to Center | 0.625 in |
| Overall Width | 0.48 in |
| Application | For Code Conductor |
| Overall Length | 2.66 in |
| Length (Straight Wireway) | 2.66 in |
| Special Features | Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands, Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements, Un-Insulated Compression Narrow Tongue Terminal, Up to 35 Kv |
| Termination Style | Crimp |
| Maximum Voltage | 35 kV AC |
| For Stud Size | 1/4 in |
| Tongue Thickness | 0.12 in |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| Barrel Outside Diameter | 0.56 in |
| Strip Length | 1 in |
| For Wire Type | Stranded |
| Hole Size | 0.27 in |
| Tongue Length | 0.49 in |
| For Wire Size | 2/0 AWG |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| RoHS Compliant | Yes |
| Barrel Style | Chamfered |
| Inspection Hole | Yes |
| For Stranded Copper Wire Size - Minimum | 2/0 AWG |
| Tongue Width | 0.48 in |
| Maximum Operating Temperature | 194 deg F |
| Tongue Angle | Straight |
| Barrel Size | Standard |
| Conductor - Material | Copper |
| Plated | Y |
| Physical Attribute - Tongue Angle | Straight |
| Voltage - Maximum | 35000 |
| Conductor - Copper Str Navy Size | 125 (61) Navy |
| Dimension - Stud Size inch | 44930 |
| Dimension - Hole Size fraction | 2023-01-04 |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Stud Size fraction | 2023-01-04 |
| Dimension - Hole Size inch | 0.27 |
| Die Index | 13 |
| Dimension - Bolt Size fraction | 44930 |
| Conductor Size | 2/0 AWG |
| Feature - Barrel Style | Chamfered |
| Type | YA-L-2NT |
| Dimension - Length Overall inch | 2.66 in |
| Certification - CSA Approved | Yes |
| Dimension - Hole Size mm | 6.9 mm |
| Finish Type | Tin-Plated |
| Conductor - Copper Str Size Range | 2/0 AWG |
| Conductor - Copper Str Navy Size Range | 125 (61) Navy |
| Conductor Type | CODE |
| UL Listed | Yes |
| Dimension - D inch | 1.22 in |
| Dimension - Bolt Size inch | 0.25 |
| Trade Name | HYLUGâ„¢ |
| Voltage Rating | 35 kV |
| Physical Attribute - Number of Holes | 2 |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Str Size | 2/0 AWG |
| Dimension - B Length fraction | 15/16 in |
| Dimension - B Length inch | 0.94 in |
| Dimension - N inch | 1/4 in |
| Feature - Barrel Type | Standard |
| Dimension - Pad Width inch | 0.48 in |
| Dimension - L Length Overall mm | 68 mm |
| Dimension - Z inch | 0.24 in |
| Dimension - Strip Length inch | 1 in |
| Rating - KVA | 35 kV |
| Dimension - Outside Diameter inch | 0.56 in |
| Plating Type | Tin Electro Plated |
| Industry Standard(s) | UL 486A-486B |
| Package Quantity | 1 |
