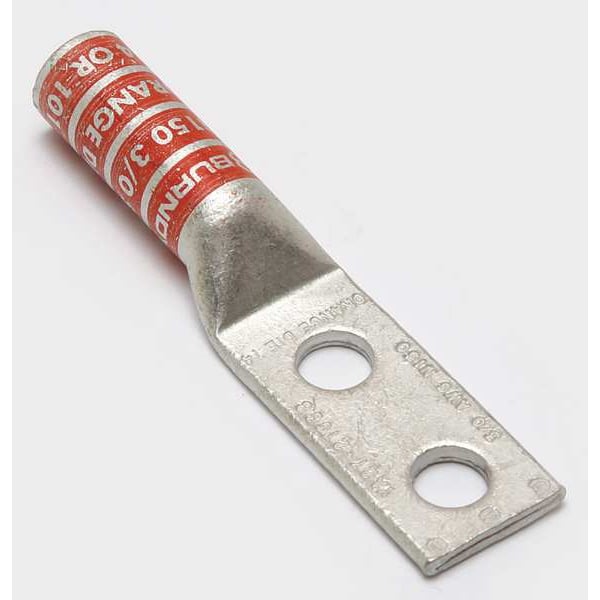

Conector compresor de dos agujeros para terminal, 3/0 AWG.
| Cable Size | 3/0 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.9 in |
| Material | Copper |
| Length | 3.82 in |
| Color Code | Orange |
| Item | Two-Hole Lug Compression Connector |
| Stud Size | 3/8 in |
| Hole Center to End | 0.41 in |
| Barrel Length | Long |
| Die Code | 14 |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Hole Center to Center | 1 in |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Tongue Style | Standard |
| Plate Material | Electro Tin |
| Peep Hole | No |
| Application | For Code Conductor |
| Overall Width | 0.9 in |
| Overall Length | 3.82 in |
| Length (Straight Wireway) | 3.82 in |
| Strip Length | 1-9/16 in |
| Termination Style | Crimp |
| Tongue Thickness | 0.12 in |
| For Wire Size | 3/0 AWG |
| Maximum Voltage | 35 kV AC |
| Tongue Length | 0.84 in |
| Maximum Operating Temperature | 194 deg F |
| Barrel Outside Diameter | 0.62 in |
| For Wire Type | Stranded |
| Tongue Width | 0.9 in |
| Barrel Style | Chamfered |
| For Conductor Material | Copper |
| Contact Finish | Tin |
| Special Features | Corrosion Resistant, Non-Insulated Construction |
| Hole Size | 0.4 in |
| For Stud Size | 3/8 in |
| For Stranded Copper Wire Size - Minimum | 3/0 AWG |
| For Stranded Copper Wire Size - Maximum | 3/0 AWG |
| Inspection Hole | No |
| Tongue Angle | Straight |
| Barrel Size | Long |
| RoHS Compliant | Yes |
| Rating - Minimum Voltage | 600 |
| Dimension - B Length fraction | 1-1/2 in |
| Dimension - Strip Length inch | 42378 |
| Dimension - Pad Width inch | 0.9 in |
| Conductor - Copper Str Size | 3/0 AWG |
| Dimension - B Length inch | 1-1/2 in |
| Dimension - Hole Size inch | 0.4 in |
| Physical Attribute - Number of Holes | 2 |
| Dimension - L Length Overall mm | 97 mm |
| Rating - KVA | 35 kV |
| Conductor - Copper Str Navy Size | 150 (61) Navy |
| Industry Standard(s) | UL468A-468B |
| Plated | Y |
| Dimension - Z inch | 0.43 in |
| Dimension - Bolt Size fraction | 44993 |
| Plating Type | Tin Electro Plated |
| Physical Attribute - Tongue Angle | Straight |
| Standards - Industry Standards Met | UL468A-468B |
| Feature - Barrel Type | Long |
| Conductor - Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Trade Name | HYLUGâ„¢ |
| Voltage - Maximum | 35000 |
| Dimension - N inch | 0.41 in |
| Conductor - Copper Str Size Range | 3/0 AWG |
| Thickness - Pad | 0.12 in |
| Die Index | 14 |
| Dimension - Length Overall inch | 3.82 in |
| Certification - CSA Approved | Yes |
| Voltage Rating | 35 kV |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Feature - Barrel Style | Chamfered |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Stud Size inch | 44993 |
| Type | Tin Plated, Long Barrel |
| Dimension - Thread Size | 44993 |
| Dimension - Outside Diameter inch | 0.62 in |
| Package Quantity | 1 |
