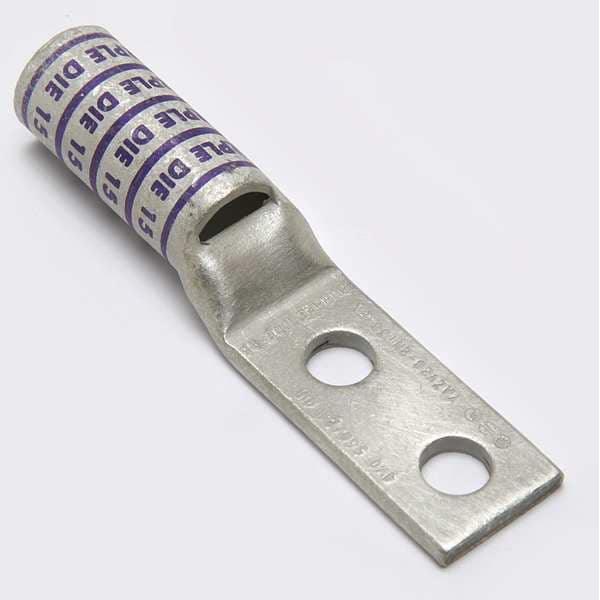

Two Hole Lug Compress Connector, 4/0 AWG, Length: 4.02 in
| Cable Size | 4/0 AWG |
|---|---|
| Connector Type | Long Barrel |
| Width | 0.94 in |
| Material | Copper |
| Length | 3.96 in |
| Color Code | Purple |
| Hole Center to End | 0.41 in |
| Tongue Style | Standard |
| Die Code | 15 |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Stud Size | 3/8 in |
| Barrel Length | Long |
| Hole Center to Center | 1 in |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Peep Hole | Yes |
| Item | Two-Hole Lug Compression Connector |
| Plate Material | Electro Tin |
| Overall Width | 0.94 in |
| Application | For Flex Conductors |
| Overall Length | 3.96 in |
| Length (Straight Wireway) | 4.02 in |
| Strip Length | 1-11/16 in |
| Inspection Hole | Yes |
| Tongue Angle | Straight |
| RoHS Compliant | Yes |
| Tongue Length | 0.84 in |
| Maximum Operating Temperature | 194 deg F |
| For Stranded Copper Wire Size - Minimum | 4/0 AWG |
| Barrel Style | Skived |
| Special Features | Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion, Tin-Zinc Plated for Battery Connectors or Other Heavy Duty Equipment, to Reduce the Corrosion From Lead/Acid Batteries, Uninsulated Copper Compression Terminal, Tin-Zinc Plated, Up to 35 Kv |
| For Stranded Copper Wire Size - Maximum | 4/0 AWG |
| Maximum Voltage | 35 kV AC |
| For Stud Size | 3/8 in |
| Barrel Outside Diameter | 0.77 in |
| Hole Size | 0.39 in |
| Termination Style | Crimp |
| Tongue Thickness | 0.17 in |
| For Conductor Material | Copper |
| Tongue Width | 0.94 in |
| For Wire Size | 4/0 AWG |
| Contact Finish | Tin |
| For Wire Type | Stranded |
| Barrel Size | Long |
| Dimension - Z inch | 0.43 in |
| Dimension - Strip Length inch | 42380 |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Dimension - B Length inch | 1.62 in |
| Wire Size | 4/0 AWG |
| Dimension - Pad Width inch | 0.94 in |
| Conductor - Copper Str Compact Size | "4/0 AWG" |
| Conductor - Copper Flex I Size | 4/0 AWG |
| Dimension - Hole Size inch | 0.41 |
| Dimension - B Length fraction | 1-5/8 in |
| Physical Attribute - Number of Holes | 2 |
| Dimension - L Length Overall mm | 101 mm |
| Conductor - Copper Flex H Size Range | 4/0 AWG |
| Conductor - Copper Str Navy Size | 200 |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Hole Size fraction | 2023-03-08 |
| Conductor - Copper Str Size | 4/0 AWG |
| Conductor - Copper DLO Size | 4/0 (550/#24) DLO |
| Certification - CSA Approved | Yes |
| UL Listed | Yes |
| Dimension - Bolt Size inch | 0.38 |
| Dimension - Length Overall inch | 3.96 in |
| Conductor - Copper Flex K Size Range | 4/0 AWG |
| Dimension - Stud Size fraction | 2023-03-08 |
| Feature - Barrel Type | Long |
| Dimension - Outside Diameter inch | 0.77 in |
| Dimension - Diameter Min Size inch | 1.84 in |
| Conductor - CopperWeld Str Size | 4/0 E AWG;4/0 EK AWG;4/0 F AWG;4/0 G AWG;4/0 V AWG |
| Voltage Rating | 35 kV |
| Dimension - N inch | 0.41 in |
| Feature - Barrel Style | Skived |
| Plated | Y |
| Conductor - Copper Flex G Size Range | 4/0 AWG |
| Dimension - Bolt Size fraction | 44993 |
| Dimension - Length Side B inch | 3.96 in |
| Conductor - Material | Copper |
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
| Industry Standard(s) | UL 486A-486B |
| Trade Name | HYLUGâ„¢ |
| Conductor - Copper DLO Size Range | 4/0 AWG |
| Conductor - Copper Str Size Range | 4/0 AWG |
| Conductor - Copper Flex H Size | 4/0 AWG |
| Conductor Size | 4/0 AWG |
| Finish Type | Tin-Plated |
| Rating - KVA | 35 kV |
| Die Index | 15 |
| Conductor - Copper Flex G Size | 4/0 AWG |
| Type | Barrel Narrow Tongue, YAZV-2NTFX |
| Conductor Type | CODE, FLEX |
| Conductor - Copper Flex I Size Range | 4/0 AWG |
| Plating Type | Tin Electro Plated |
| Dimension - Hole Size mm | 10.4 mm |
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Stud Size inch | 3/8 in |
| Package Quantity | 1 |
