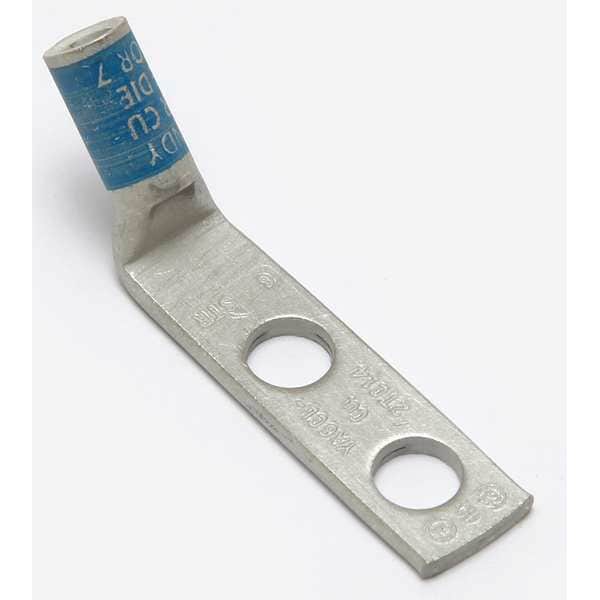

Two Hole Lug Compression Connector, 6 AWG, Length: 2.04 in
| Cable Size | 6 AWG |
|---|---|
| Connector Type | Standard Barrel |
| Width | 0.45 in |
| Material | Tin-Plated Copper |
| Length | 2.04 in |
| Color Code | Blue |
| Stud Size | 1/4 in |
| Barrel Length | Short |
| Die Code | 374, 7 |
| Plate Material | Electro Tin |
| Standards | CSA Certified, UL 486A-486B, UL Listed |
| Tongue Style | Standard |
| Hole Center to End | 0.31 in |
| Peep Hole | Yes |
| Hole Center to Center | 0.625 in |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Item | Two-Hole Lug Compression Connector |
| Overall Width | 0.45 in |
| Overall Length | 2.04 in |
| Application | For Code Conductor |
| Length (Straight Wireway) | 2.04 in |
| For Wire Size | 6 AWG |
| For Stranded Copper Wire Size - Maximum | 6 AWG |
| Barrel Style | Chamfered, Skived |
| Termination Style | Crimp |
| Tongue Width | 0.45 in |
| Contact Finish | Tin |
| For Wire Type | Stranded, Solid |
| Strip Length | 5/8 in |
| Barrel Outside Diameter | 0.29 in |
| Maximum Voltage | 35 kV AC |
| Tongue Thickness | 0.08 in |
| Maximum Operating Temperature | 194 deg F |
| Tongue Angle | 45 Degrees Angled |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Inspection Hole | Yes |
| Hole Size | 0.27 in |
| For Conductor Material | Copper |
| Barrel Size | Standard |
| For Stud Size | 1/4 in |
| Tongue Length | 0.64 in |
| RoHS Compliant | Yes |
| Dimension - Outside Diameter inch | 0.29 in |
| Physical Attribute - Number of Holes | 2 |
| Voltage Rating | 35 kV |
| Dimension - Bolt Size fraction | 2023-01-04 |
| Dimension - Stud Size fraction | 2023-01-04 |
| Plating Type | Tin Electro Plated |
| Conductor Size | 6 AWG |
| Rating - KVA | 35 kV |
| Feature - Barrel Style | ChamferedSkived |
| Rating - Minimum Voltage | 600 |
| Plated | Y |
| Conductor - Copper Str Size | 6 AWG |
| Dimension - Bolt Size inch | 0.25 |
| Standards - Industry Standards Met | UL468A-468B |
| Dimension - Z inch | 0.33 in |
| Dimension - Pad Width inch | 0.45 in |
| Physical Attribute - Tongue Angle | 45 Degree |
| Certification - CSA Approved | Yes |
| Conductor - Copper Str Size Range | 6 AWG |
| Dimension - Stud Size inch | 1/4 in |
| Voltage - Maximum | 35000 |
| Dimension - L Length Overall mm | 52 mm |
| Dimension - Hole Size inch | 0.27 in |
| Dimension - Strip Length inch | 5/8 in |
| Die Index | 7;374 |
| Industry Standard(s) | UL468A-468B |
| Dimension - N inch | 0.31 in |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Hole Size fraction | 2023-01-04 |
| Finish Type | Tin-Plated |
| Dimension - Length Overall inch | 2.04 in |
| Dimension - Hole Size mm | 7 mm |
| Type | Tin Plated, Standard Barrel |
| Trade Name | HYLUGâ„¢ |
| Dimension - Height inch | 0.77 in |
| Feature - Barrel Type | Standard |
| Conductor Type | CODE |
| Dimension - B Length fraction | 9/16 in |
| Conductor - Copper Solid Size | 6 AWG |
| UL Listed | Yes |
| Dimension - B Length inch | 0.54 in |
| Conductor - Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Package Quantity | 1 |
