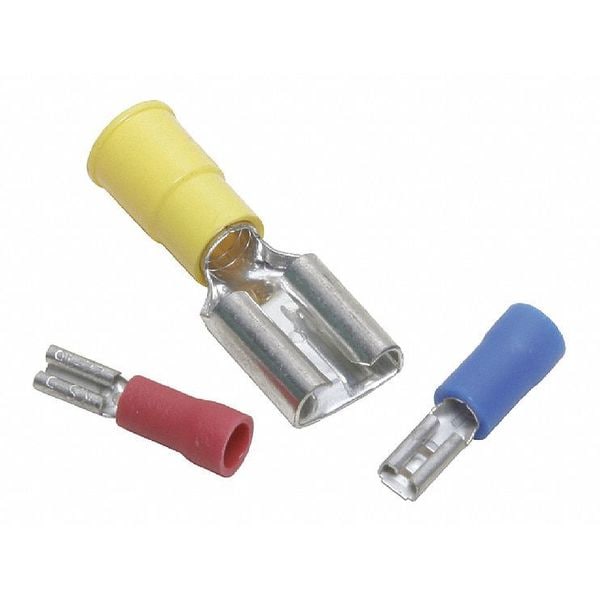

Vinyl Insulated Female Disc, 12-10AWG
| Insulation | Y |
|---|---|
| Material | Brass |
| Insulation Type | Vinyl |
| Connector Type | Female Disconnect |
| Application | For quickly connecting or disconnecting a terminal |
| Industry Standard(s) | UL467 |
| Voltage - Maximum | 600 V |
| Dimension - Strip Length inch | 3/8 in |
| Conductor Type | CU C Str-Size |
| Type | Connectors |
| Certification - cULus | Yes |
| Plated | Y |
| Dimension - Width inch | 0.25 in |
| Standards - Industry Standards Met | UL467 |
| Dimension - Width mm | 6 mm |
| Dimension - Length Overall inch | 0.98 in |
| Conductor Range | #12 AWG to #10 AWG |
| Plating Type | Tinned |
| Trade Name | FINGRIP™ |
| Conductor Size | 12 to 10 AWG |
| Package Quantity | 1 |
