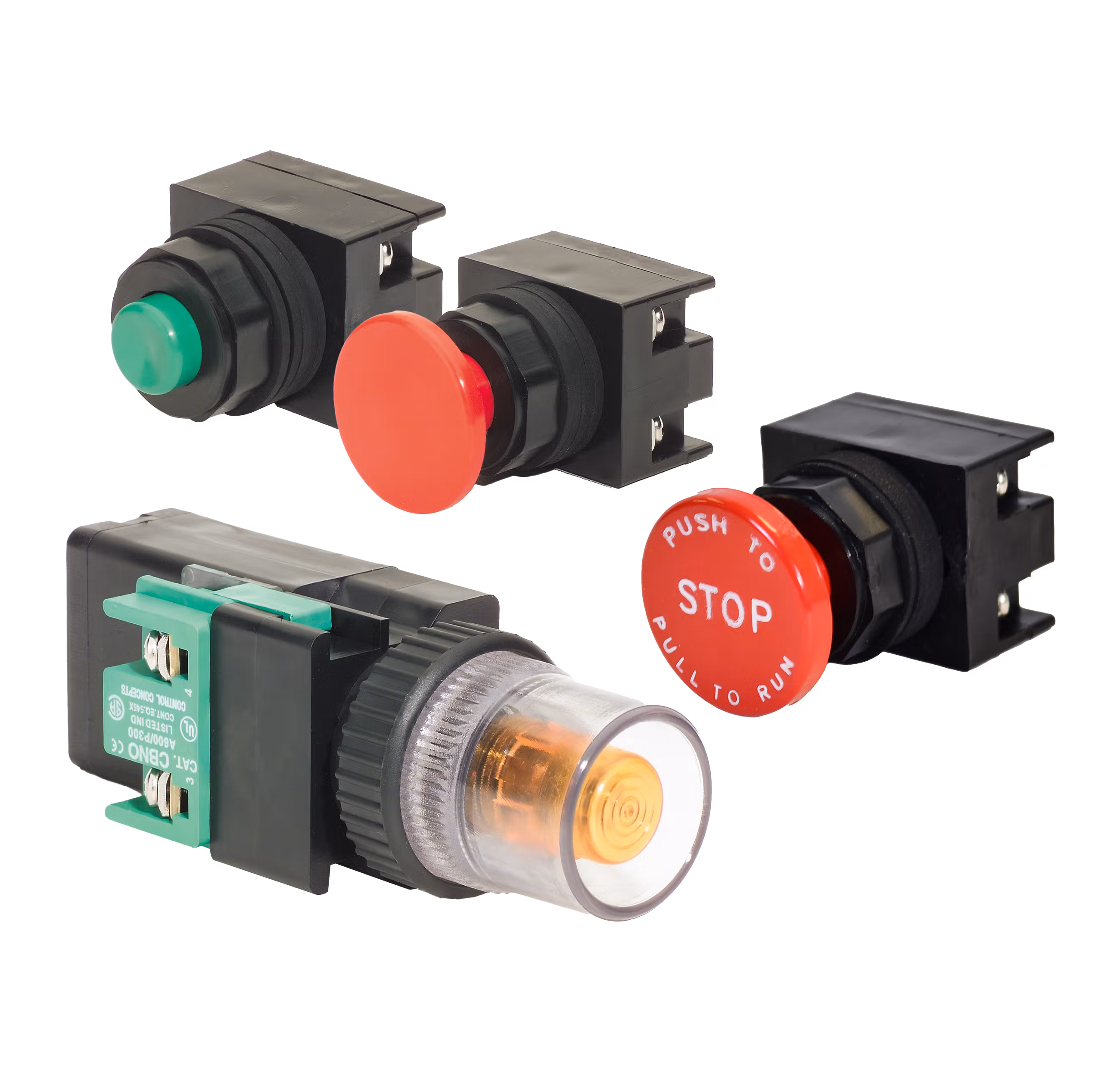

22mm NEMA Main. Non-Illum. 2-Pos. Push-Pull, 1 NC Contact Block, Polyester Clamp Ring, Mushroom Cap, Red
| Mounting Diameter | 22mm |
|---|---|
| Operator/Switch Size | 22mm |
| Make Rating | 7200VA(AC)/138VA(DC) |
| Break Rating | 720VA(AC)/138VA(DC) |
| Ith-Thermal Current | 10A(AC)/5A(DC) |
| Device Rating | NEMA |
| NEMA Rating | Type 1,2,3,3R,4/4X,12,13 |
| IP Rating | IP65 |
| Action/Function | Maintained, Push STOP - Pull START |
| No. of Position/Stages | 2 |
| Contact Configuration | 1 N.C. |
| Bezel Material | Polyester |
| Cap/Lens Type | Mushroom |
| Handle Color | Red Handle/White Insert |
| Cap/Lens Color | Red |
