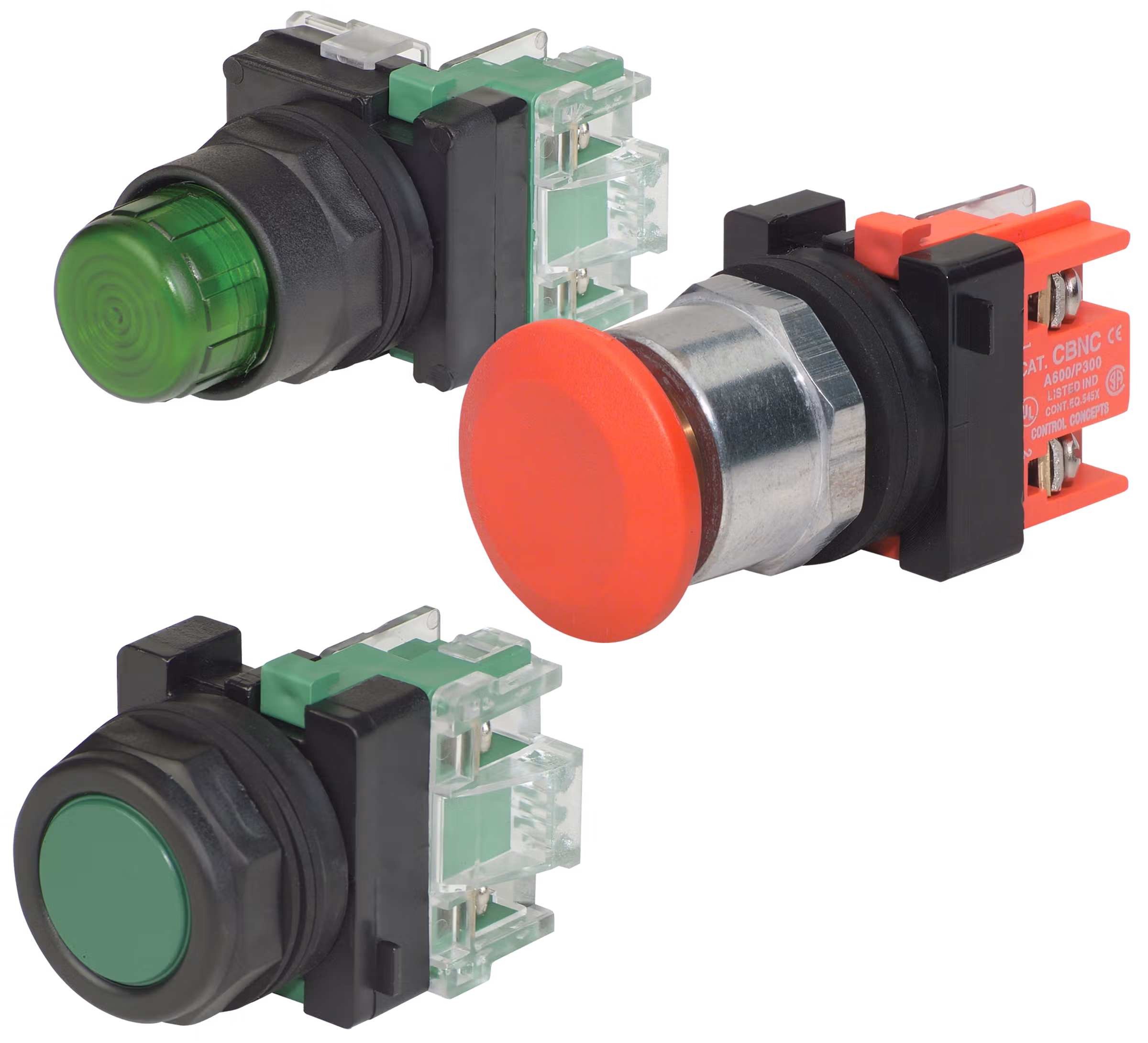

30mm Main. Illum. 2-Pos. Push-Pull Pushbutton, Full Voltage, 24V AC/DC, LED Red, Black Polyester Clamp Ring, Mushroom, Red Lens, DB
| Mounting Diameter | 30mm |
|---|---|
| Break Rating | 720VA(AC)/138VA(DC) |
| IP Rating | IP20 |
| Device Rating | NEMA |
| Action/Function | Maintained, Push STOP - Pull START |
| Ith-Thermal Current | 10A(AC)/5A(DC) |
| NEMA Rating | Type 1,2,3,3R,4/4X,12,13 |
| Light Module | Full Voltage |
| Make Rating | 7200VA(AC)/138VA(DC) |
| No. of Position/Stages | 2 |
| Voltage | 24V AC/DC |
| Cap/Lens Type | Mushroom |
| Lamp Color | Red |
| Operator/Switch Size | 30mm |
| Lamp Type | LED |
| Cap/Lens Color | Red |
| Contact Configuration | 1 D.B. |
| Bezel Material | Polyester |
