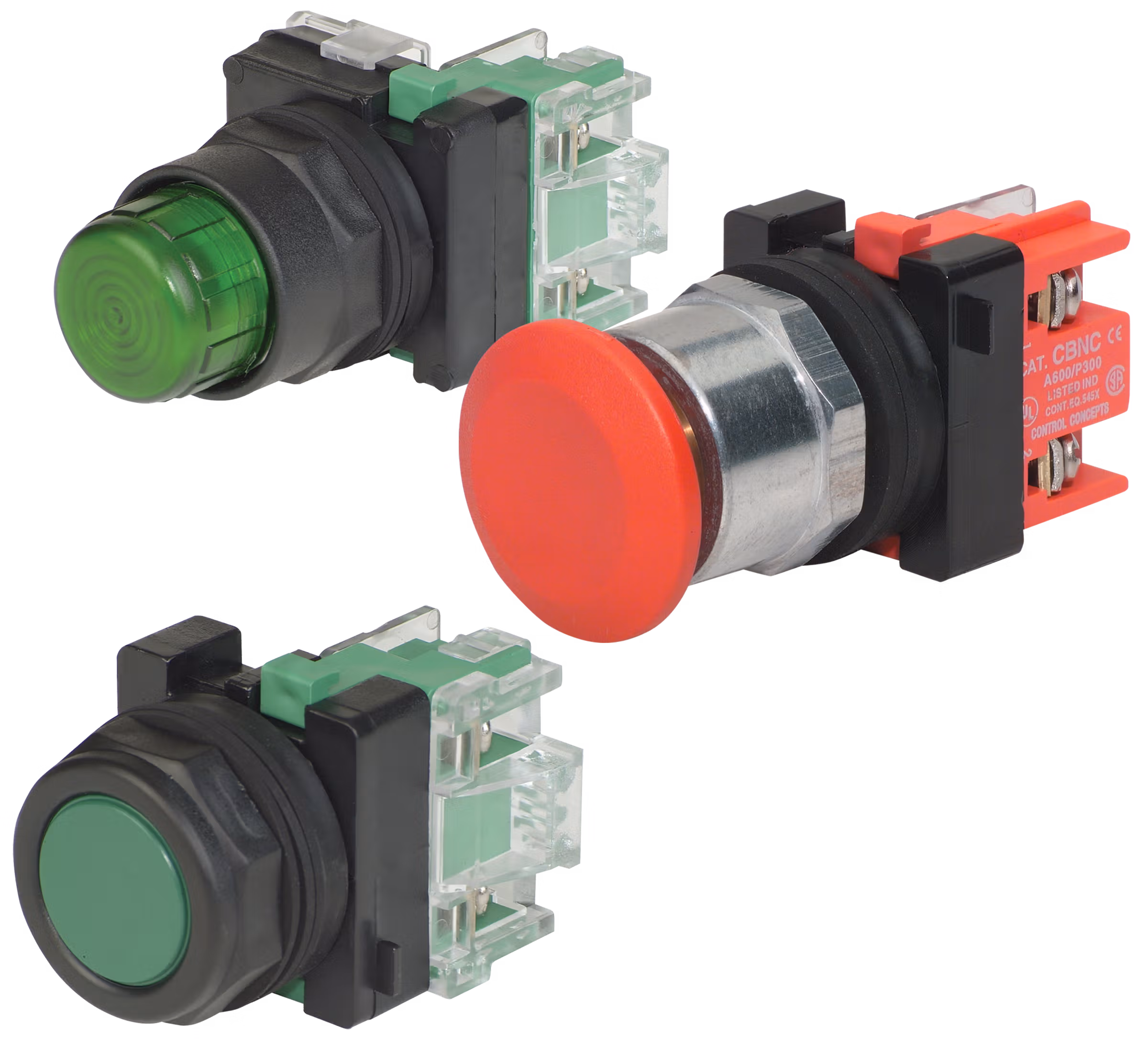

30mm Mom. Non-Illum. Pushbutton, Black Polyester Clamp Ring, Guarded Extended, Red, EM, DB
| Ith-Thermal Current | 10A(AC)/5A(DC) |
|---|---|
| Mounting Diameter | 30mm |
| Break Rating | 720VA(AC)/138VA(DC) |
| IP Rating | IP20 |
| Device Rating | NEMA |
| Action/Function | Momentary |
| Handle Color | Red Handle/White Insert |
| IP20 | IP20 Guard |
| NEMA Rating | Type 1,2,3,3R,4/4X,12,13 |
| Bezel Material | Polyester |
| Cap/Lens Type | Extended/Guarded |
| Operator/Switch Size | 30mm |
| Contact Configuration | 1 D.B. |
| Cap/Lens Color | Red |
| Make Rating | 7200VA(AC)/138VA(DC) |
