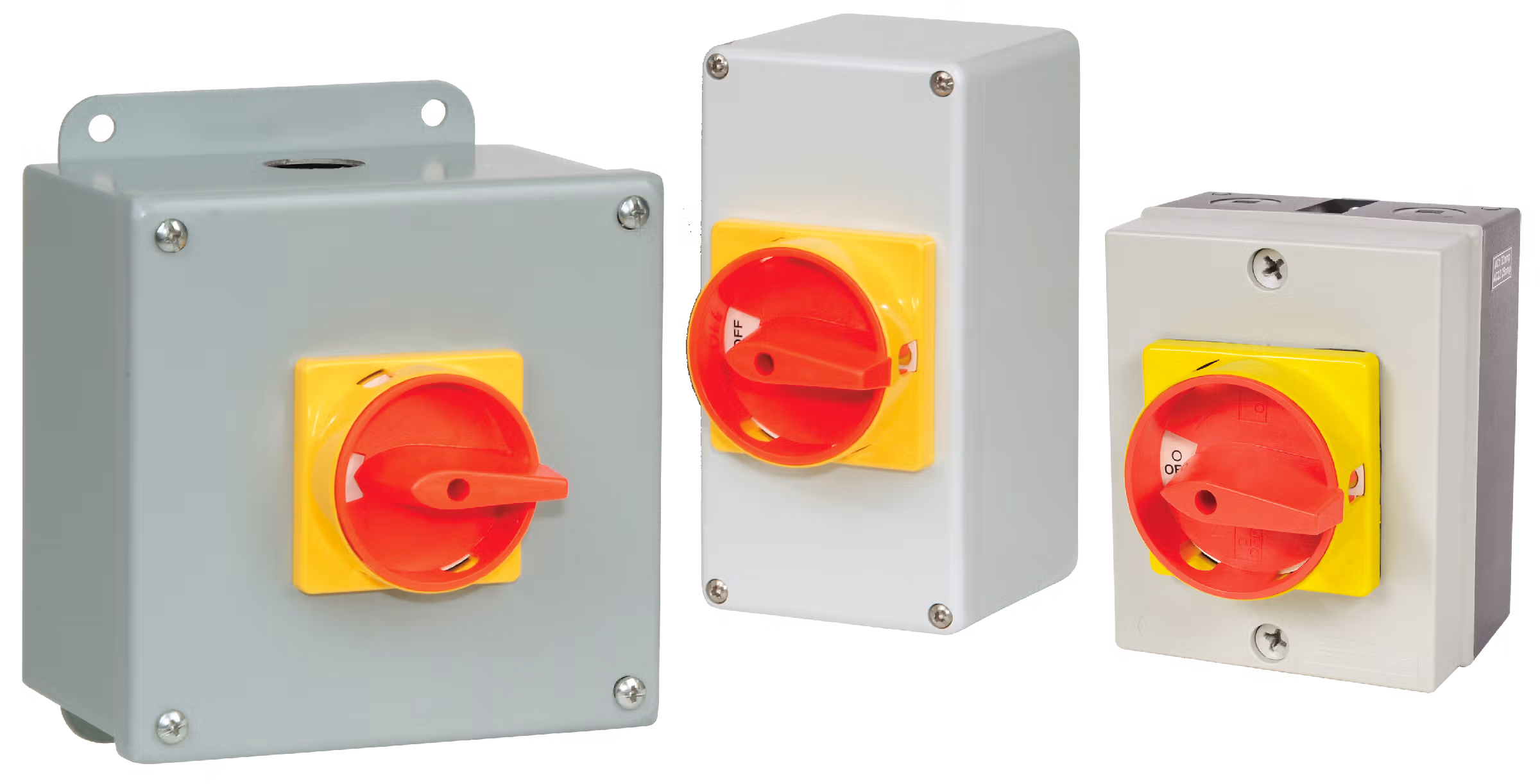

Disconnect Switch, Enclosed Non-Fused Door Mount, 4 Pole / 40A, ABS Plastic, Round, Red Operator / Yellow Bezel
| SCCR Rating | 10kA@600VAC |
|---|---|
| Current Rating | 40A |
| Operator Type | Enclosed, Non-Fused |
| Enclosure Material | ABS Plastic |
| IP Rating | IP20 |
| Operator Handle | Round (Type 1,2,3,3R,4/4X,12,13 & IP65) |
| Enclosure Dimension | 125mm W x 175mm H x 90mm D |
| NEMA Rating | Type 1,2,3,3R,4/4X,12,13 |
| Operator/Bezel Color | Red/Yellow |
| Cover Type | Lift-off |
| AC Motor Switching Rating | 20HP (60Hz) @ 480V 3 Phase |
| Power Poles | 4 |
