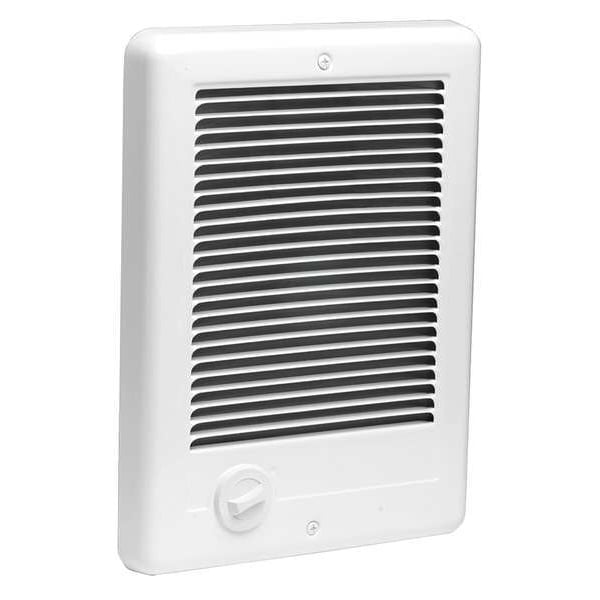

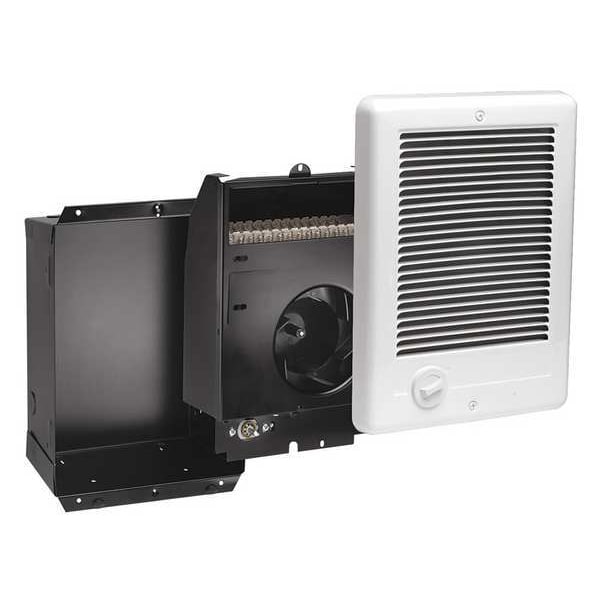

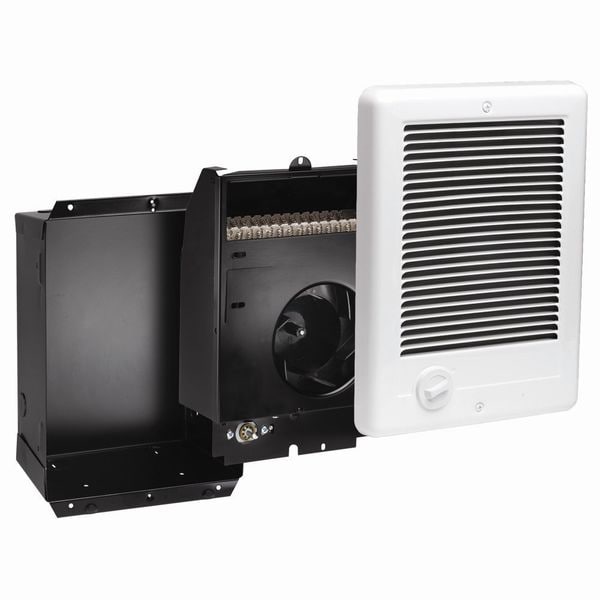

Recessed Electric Wall-Mount Heater, Recessed, 1000/750W W, 240/208V AC, White
| Electric Heater Item | Electric Wall Heater |
|---|---|
| Electric Heater Type | Light Commercial/Residential |
| Watts | 1000/750W |
| BtuH | 3415/2560 |
| Heater Voltage | 240/208V |
| Electric Heater Phase | 1 |
| Wall Opening Width | 7 |
| Color | White |
| Amps AC | 4.2/3.6 |
| Wall Opening Depth | 4.75 |
| Mounting Type | Recessed |
| Grille Height | 12 in |
| Item | Recessed Electric Wall-Mount Heater |
| Features | Rapid Heat Up with Coil Element, Quiet Operation |
| Housing Height | 11-1/8 in |
| Finish | Powder Coated Paint |
| Housing Width | 7-7/8 in |
| Grille Depth | 1 in |
| Housing Depth | 4-3/4 in |
| Hz | 60 |
| Grille Width | 9 in |
| Manufacturers Warranty Length | 2 yr (Limited) |
| Wall Opening Height | 10-1/4 in |
| Grille Material | Metal |
| Standards | cULus |
| Voltage | 240/208V AC |
| Air Flow | 40 to 55 CFM |
| Phase | 1 |
| Height | 10.75 |
| Series | Com-Pak |
| Includes | Thermostat |
| Grille Color | White |
| Heating Method | Fan Forced |
| Amperage | 3.6 A/4.2 A |
| Heating Capacity | 2,560/3,415 BtuH |
| Smart Connectivity | No Connectivity |
| Thermal Overheat Protection | Automatic Reset |
| Heater Mounting Position | Horizontal or Vertical Burn |
| Frequency | 60 Hz |
| Programming Capability | Not Programmable |
| Rough-In Depth | 4 in |
| Rough-In Width | 8 in |
| Wattage Output | 750 W/563 W |
| Control Type | Mechanical Selector Dial |
| Voltage, Phase | 208/240V AC, 1-phase |
| Thermostat Included | Unit-Mounted |
| Minimum Mounting Height from Floor | 4-1/2 in |
| Rough-In Height | 10-1/8 in |
| Grille Finish | Powder Coated |
| Rough-In Dimensions - H x W x D | 10-1/8 in x 8 in x 4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
