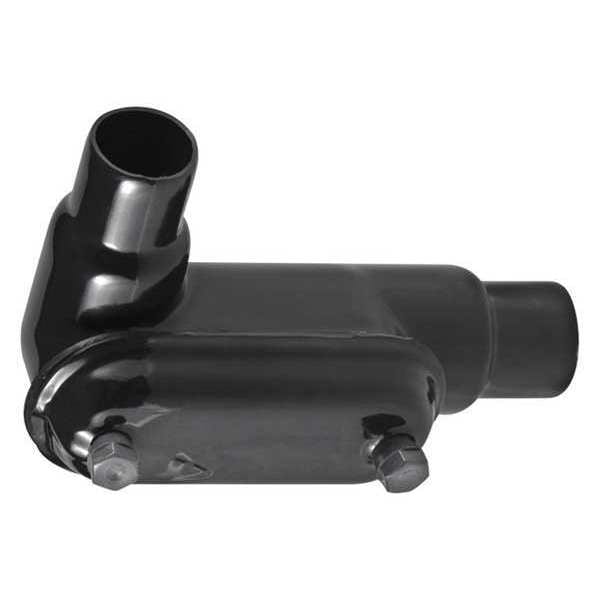

Conduit Body, Type LL, FM7, 4 in., PVC
| Item | Conduit Outlet Body |
|---|---|
| Hub Size | 4 in |
| Hazardous Location | No |
| Conduit Outlet Body Material | Iron |
| Material | Steel |
| Conduit Outlet Body Style | LL |
| Conduit Outlet Body Capacity | 244 cu in |
| Includes | Screws |
| Conduit Outlet Body Hub Size | 4 in |
| For Use With | Threaded Conduit |
| Conduit Outlet Body Hub Style | Threaded |
| Special Features | Interior Urethane Coating, Corrosion Resistant |
| Wall Thickness | 4-1/2 in |
| Color | Black |
| Standards | CSA C22.2 No. 18, UL Listed Standard 514B |
| Back Type | Flat |
| Form | Form 7 |
| Connection Type | Threaded |
| Finish | PVC Coated |
| Body Style | LL |
| Number of Hubs | 2 |
| Compatible Conduit Trade Size | 4 in |
| Body Capacity | 244 cu in |
| Cover Included | Yes |
| Trade Size | 4 in |
| Hub Style | Threaded |
| Overall Height | 5-7/16 in |
| Overall Width | 7 in |
| Body Type | LB Style |
| Width | 6.98 |
| Height | 5.42 |
| Length | 14.73 |
| Standard | UL 514B/ CSA C22.2 NO.18 |
| Type | PVC COATED FORM 7 LL FITTINGS |
| Application | Act as pull outlets for conductors being installed, Provide openings for making splices and taps in conductors, Connect conduit sections, Provide taps for branch conduit runs, Provide for access to conductors for maintenance and future, system changes |
| Package Quantity | 1 |
