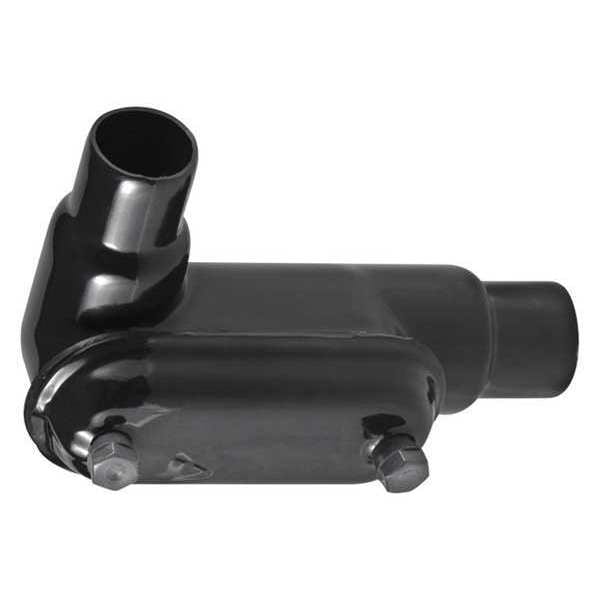

Conduit Body, Type LL, FM8, 3/4 in., PVC
| Item | Conduit Outlet Body |
|---|---|
| Hub Size | 3/4 in |
| Hazardous Location | No |
| Conduit Outlet Body Material | Iron |
| Conduit Outlet Body Style | LL |
| Material | Aluminum |
| Conduit Outlet Body Capacity | 8 cu in |
| Includes | Screws |
| Conduit Outlet Body Hub Size | 3/4 in |
| Conduit Outlet Body Hub Style | Threaded |
| For Use With | Threaded Conduit |
| Special Features | Interior Urethane Coating, Corrosion Resistant |
| Wall Thickness | 1.13 in |
| Back Type | Flat |
| Standards | CSA C22.2 No. 18, NEMA 4X Rated, UL Listed Standard 514B |
| Color | Black |
| Form | Form 8 |
| Compatible Conduit Trade Size | 3/4 in |
| Overall Height | 1-3/4 in |
| Cover Included | Yes |
| Number of Hubs | 2 |
| Connection Type | Threaded |
| Hub Style | Threaded |
| Finish | PVC Coated |
| Overall Width | 2-3/8 in |
| Body Type | LB Style |
| Trade Size | 3/4 in |
| Body Capacity | 8 cu in |
| Body Style | LL |
| Height | 1.67 in |
| Width | 2.48 in |
| Length | 5.98 in |
| Standard | UL 514B/ CSA C22.2 No.18 |
| Type | PVC COATED FORM 7 LL FITTINGS |
| Application | Act as pull outlets for conductors being installed, Provide openings for making splices and taps in conductors, Connect conduit sections, Provide taps for branch conduit runs, Provide for access to conductors for maintenance and future, system changes |
| Package Quantity | 1 |
