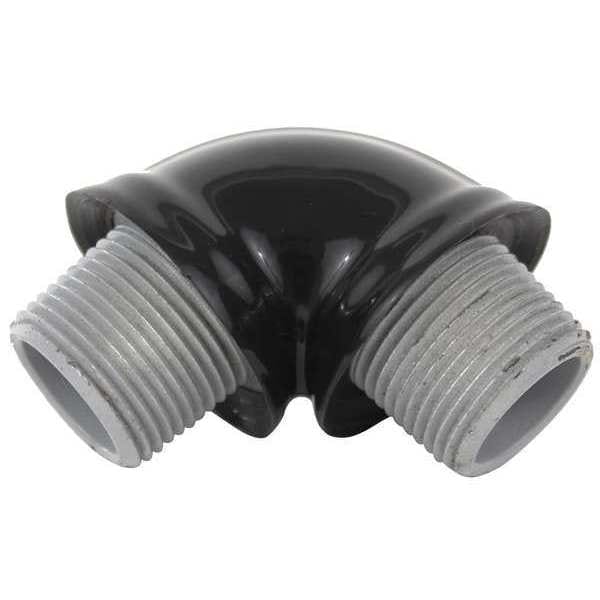

RMC 90 Deg Elbow, 1 in, Threaded, Malleable Iron, PVC Coated, Black
| Item | RMC |
|---|---|
| Conduit Fitting Type | Elbow |
| Trade Size | 1 in |
| Connection Type | Threaded |
| Material | Malleable Iron |
| Finish | PVC Coated |
| Color | Black |
| Overall Length | 1-7/8 in |
| Insulated | Yes |
| Includes | Sealing Form, Sealing Sleeves |
| Application | Used Where Very Tight Radius Elbow is Required |
| Hazardous Location | Yes |
| Standards | CSA Standard: C22.2 No. 30, EL 195-395, Class I, Division 1 & 2, Groups A, B, C, D Class III, NEC/CEC, UL Standard: 886 |
| Hazardous Location Rating | Class I, Div 1 and 2, Groups A, B, C, D, Class III |
| Conduit Outlet Body Capacity | 3 cu in |
| Thread Size | 1"-11 1/2 |
| Type | Malleable Fitting |
| Elbow Angle | 90 deg |
| Thread Type | NPS |
| Compatible Conduit Trade Size | 1 in |
| Elbow Radius | 1-7/8 in |
| Connection Orientation | 90 Degrees |
| Rain Tight | Yes |
| Overall Height | 1-7/8 in |
| Thread Gender | Male to Male |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Conduit Trade Size | 1 in |
| Conduit Fitting Material | Malleable Iron |
| Package Quantity | 1 |
