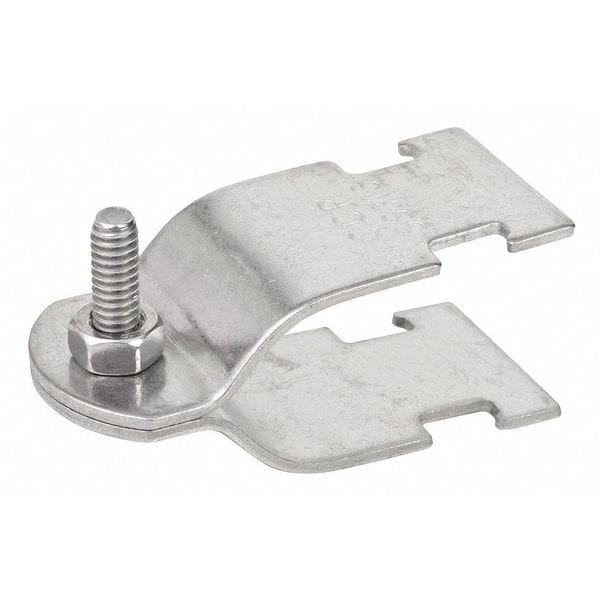

Conduit Clamp, 316 SS, 1-1/2 In
| Sub-Category | Hangers, Clamps |
|---|---|
| Item | Conduit Support Strap |
| Color | Silver |
| Finish | Polished |
| Conduit Size | 1-1/2 in |
| Material | 316 Stainless Steel |
| Thread Size | 5/16 in-18 |
| Depth | 1/4 in |
| For Use With | 1 5/8 in Strut Channels |
| Includes | Bolt, Nut |
| Thickness | 7/64 in |
| Length | 3-1/2 in |
| Conduit Type | Rigid |
| Width | 1-1/4 in |
| Cable Range | 1.500 in |
| Length (Straight Wireway) | 3-1/2 in |
| Overall Width | 1-1/4 in |
| For Strut Channel Size | 1 5/8 in |
| Overall Depth | 1/4 in |
| Nominal Strut Size | 1-1/2 in |
| Strut Trade Size | 1-1/2 in |
| Overall Length | 3-1/2 in |
| Type | Stainless Steel STRUT CLAMP |
| Maximum Clamp Diameter | 1/2 in |
| Maximum Load | 800 LBS |
| Number Of Holes | 1 |
| Application | Used at any point along the slot slide of the channel and are inserted into the two channel returns. |
| Screw Material | STAINLESS STEEL |
| Size | 1 in |
| Standard | UL A167, ASTM A167, F593 STANDARD |
| Package Quantity | 1 |
