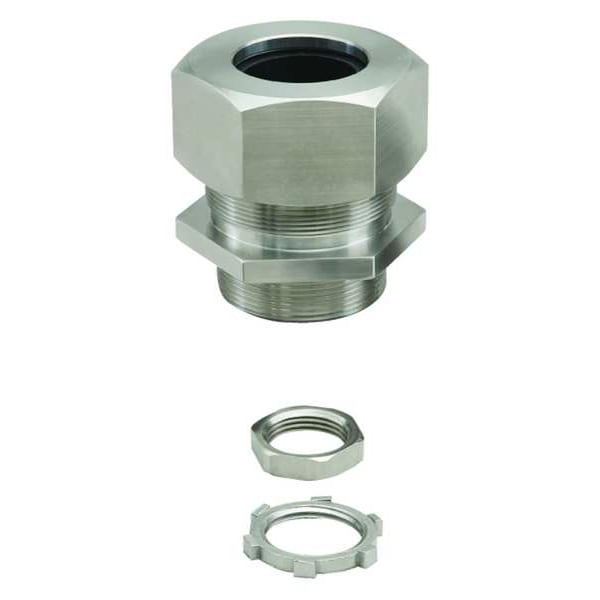

Cord Connector, 0.18-0.25 in. Cord Range
| Item - Cord Connector | Liquid Tight Cord Connector |
|---|---|
| Item | Liquid Tight Cord Connector |
| Style - Connector | Straight |
| Hub Size | 1/2 in MNPT |
| Cord Dia. Range | 0.18 to 1/4 in |
| Material | Stainless Steel |
| Color | Silver |
| Box Connection | 1/2 in MNPT |
| For Use With | Conduit |
| Material - Cord Connector | Stainless Steel |
| Material - External Strain Relief | No External Strain Relief |
| Hub Trade Size | 1/2" |
| Gland Color Code | No Code |
| Standards | CSA, NEMA 4X, UL 514D |
| Number of Cords | 1 |
| Body Color - Cord Connector | Silver |
| Connector Type | Straight |
| Length - Box to End of Connector | 1-1/4 in |
| Length | 1.81 in |
| Hazardous Location Rating | Not Rated |
| Length - External Strain Relief | No External Strain Relief |
| Strain Relief Type | No External Strain Relief |
| Insulated | No |
| Thread Gender | Male |
| For Minimum Cable OD | 0.188 in |
| Thread Type | NPT Thread |
| Body Material | Stainless Steel |
| Compatible Conduit Trade Size | 1/2 in |
| Environmental Rating | Liquid Tight |
| NEMA Rating | NEMA 4X |
| Collar Material | Stainless Steel |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Maximum Operating Temperature | 250 deg F |
| Connection Orientation | Straight |
| Resistance Properties | Corrosion Resistant |
| Body Color | Silver |
| Liquid Tight | Yes |
| Grommet Color Code | No Code |
| Bushing Material | Neoprene |
| Thread Size | 1/2 in |
| Minimum Operating Temperature | -40 deg F |
| For Maximum Cable OD | 1/4 in |
| Sealing Ring Material | Buna-A |
| Includes | Buna-A O-Ring, Stainless Steel Locknut |
| Package Quantity | 1 |
