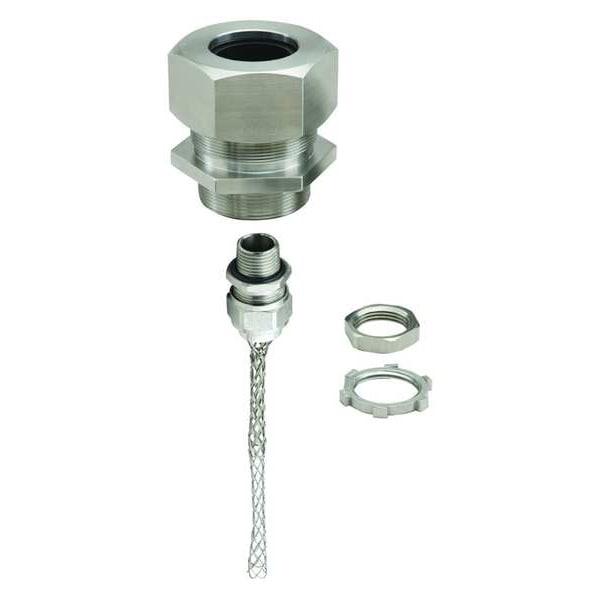

Strain Relief Cord Grip, 11-1/2 in. Mesh
| Style - Connector | Straight |
|---|---|
| Cord Grip Type | Straight |
| Item - Cord Connector | Liquid Tight Cord Connector with Strain Relief |
| Material | Stainless Steel |
| Length - External Strain Relief | 11-1/2 in |
| Insulated / Uninsulated | Uninsulated |
| Mesh Length | 11-1/2 in |
| Cord Dia. Range | 1/4 to 0.31 in |
| Standards | CSA, NEMA 4X, UL 514D |
| Liquid Tight / Dust Tight | Liquid Tight |
| Strain Relief Type | Mesh |
| Number of Cords | 1 |
| Box Connection | 1/2 in MNPT |
| Insulated | No |
| Material - External Strain Relief | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Length - Box to End of Connector | 1-1/4 in |
| Trade Size | 1/2 in |
| Cable Dia. Range | 1/4 to 0.31 in |
| Body Color - Cord Connector | Silver |
| Item | Threaded Connectors |
| Gland Color Code | No Code |
| Male/Female | Male |
| Material - Cord Connector | 304 Stainless Steel |
| Compatible Conduit Type | Liquid Tight Cord Connector |
| Minimum Operating Temperature | -40 deg F |
| Environmental Rating | Liquid Tight |
| Includes | Buna-A O-Ring, Stainless Steel Locknut |
| Resistance Properties | Corrosion Resistant |
| Body Color | Silver |
| For Minimum Cable OD | 1/4 in |
| Sealing Ring Material | Buna-A |
| Collar Material | Stainless Steel |
| Liquid Tight | Yes |
| Body Material | Stainless Steel |
| Bushing Material | Neoprene |
| Thread Size | 1/2 in |
| Grommet Color Code | No Code |
| NEMA Rating | NEMA 4X |
| Thread Gender | Male |
| Thread Type | NPT |
| Compatible Conduit Trade Size | 1/2 in |
| Connection Orientation | Straight |
| Hub Size | 1/2 in MNPT |
| Maximum Operating Temperature | 250 deg F |
| For Maximum Cable OD | 0.312 in |
| Package Quantity | 1 |
