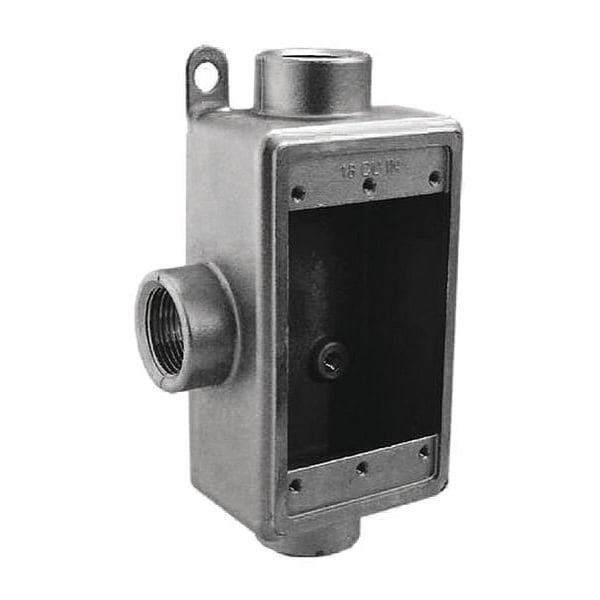

Weatherproof Electrical Box, 18 cu in, FSCT Box Type, 1 Gang, Stainless Steel
| Item | Weatherproof Electrical Box |
|---|---|
| Capacity | 18 cu in |
| Box Type | FSCT |
| Number of Gangs | 1 Gang |
| Material | Stainless Steel |
| Length | 5.9 in |
| Width | 3-1/2 in |
| Depth | 1.8 in |
| Number of Inlets | 3 |
| Color | Silver |
| Mounting Holes O.C. (In.) | 5/16 |
| Standards | ANSI/NFPA 70, CAN/CSA-C22.1, CSA C22.2 No. 18.1-04, UL File E307133, UL/cUL 514A Listed |
| Hub Size | 3/4 in |
| Bracket Type | Bracket Not Included |
| Length (Straight Wireway) | 5.9 in |
| Height | 1.8 in |
| Finish | #4 Polished Finish |
| Standard | UL 514A |
| Number of 3/4" Side Knockouts | 3 |
| Number of 1/2 In. Side Knockouts | 0 |
| Number of 1" Side Knockouts | 0 |
| Number of 1/2 In. Back Knockouts | 0 |
| IP Rating | Not Applicable |
| Number of 3/4" Back Knockouts | 0 |
| Clamp Type | Clamp Not Included |
| Number of Hubs | 3 |
| Hub Location | Top/Bottom/Side |
| Box Diameter | Not Applicable |
| Overall Width | 3-5/8 in |
| Number of 3/4 in Side Knockouts | 0 |
| Ceiling Fan Rated | Not Applicable |
| Box Width | 3-5/8 in |
| Overall Depth | 2 in |
| Number of 1/2 in Back Knockouts | 0 |
| Box Height | 6-1/4 in |
| Number of 3/4 in Back Knockouts | 0 |
| Number of 1/2 in Side Knockouts | 0 |
| Number of 1 in Side Knockouts | 0 |
| For Construction Type | Not Applicable |
| Box Depth | 2 in |
| NEMA Enclosure Rating | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Overall Height | 6-1/4 in |
| Box Shape | Rectangular |
| Package Quantity | 1 |
