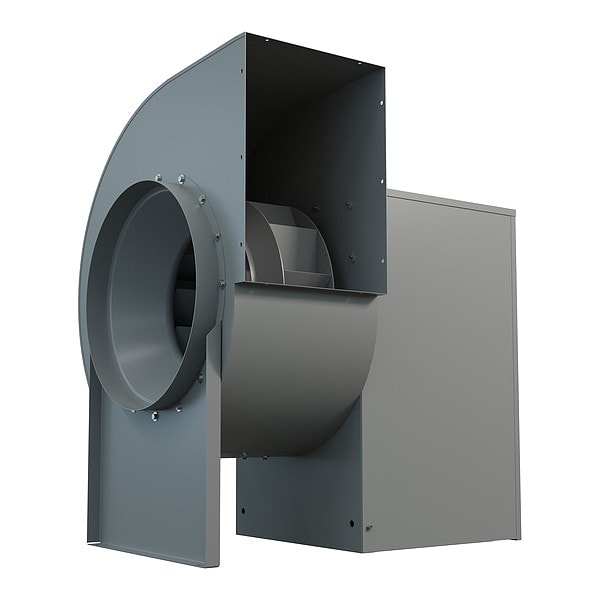

Blower, Belt Drive, Steel, 35 7/8" H
| Item | Blower |
|---|---|
| Number of Discharge Positions | 8 |
| Rotation | CCW |
| Mounting Orientation | Horizontal |
| Application | Ventilation |
| Outlet Width | 14-1/2 in |
| Wheel Material | Aluminum |
| Corrosion Resistant | Yes |
| Discharge Position | Top Horizontal |
| Outlet Diameter | Not Applicable |
| Housing Material | Steel |
| Outlet Height | 19-3/8 in |
| Outlet Shape | Rectangular |
| Wheel Type | Backward-Inclined |
| Minimum Motor Horsepower | 5 HP |
| Maximum Motor Speed | 1,876 rpm |
| Wheel Diameter | 18 in |
| AMCA Fan Class | I |
| Standards | AMCA Air Performance Certified, cETus |
| For Ventilation Type | Exhaust |
| Maximum Airflow | 6,200 cfm |
| Mount Type | Roof |
| Drive Type | Belt Drive |
| Inlet Diameter | 19-3/8 in |
| Overall Width | 36 in |
| Housing Height | 35-7/8 in |
| Housing Material Gauge | 16 ga |
| Spark Resistant Construction Type | B |
| Overall Depth | 29-9/16 in |
| Minimum Airflow | 3,500 cfm |
| Maximum Motor Horsepower | 7.5 HP |
| Includes Drive Package | Yes |
| Shaft Diameter | 1-3/16 in |
| Bearing Type | Pillow Block Ball |
| Number of Inlets | 1 |
| Housing Width | 36 in |
| Housing Depth | 29-1/2 in |
| Features | Motor Access from 3 Sides, Sloped Motor Base for Ease of Motor Installation |
| Manufacturer Warranty Length | 1 yr |
| Overall Height | 35-7/8 in |
| Resistance Properties | Corrosion Resistant |
| For Location | Outdoor |
| Chemical Resistant | No |
| For High-Static Pressure Applications | Yes |
| Assembly | Assembled |
| Wheel Width | 18-1/4 in |
| Maximum Static Pressure | 5 in wc |
| Hazardous Location Application | No |
| Speed Controllable | No |
| Maximum Inlet Air Temperature | 250 deg F |
| Flange Type | Non-Flanged |
| Flange Size | Not Applicable |
| Maximum Fan Speed | 1,900 rpm |
| Sound Level | Not Rated |
| Hazardous Location Specification | Not Applicable |
| Airflow @ 0.000 in SP | 6,200 cfm |
| Motor Horsepower | 7.5 HP |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
