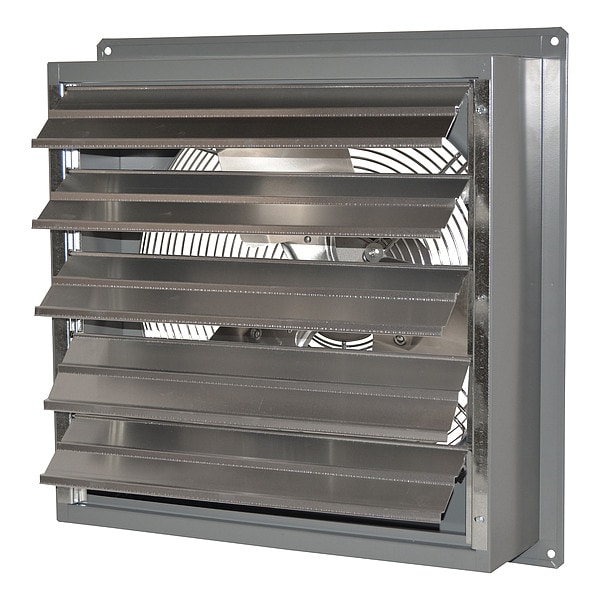

Exhaust Fan, 1,140 RPM, 1,725 RPM
| Motor Enclosure | Totally Enclosed Air Over |
|---|---|
| Number of Blades | 3 |
| Frame Material | Steel |
| Phase | 1 |
| Includes | Not Applicable |
| Item | Exhaust Fan |
| Noise Level @ 0.000 in SP @ 5 ft | 30 sones |
| Overall Height | 25-1/4 in |
| Blade Material | Galvanized Steel |
| Guard Material | Steel |
| Duct Shape | Not Applicable |
| Includes Dehumidistat | No |
| Overall Depth | 18 in |
| Includes Motor | Yes |
| Duct Width | Not Applicable |
| Maximum Coverage Area | Not Applicable |
| Full Load Current | 4.1 A |
| Exhaust Airflow @ 0.000 in SP | 3,440 cfm |
| Ring-Mount Style | Flange |
| Frame Finish | Powder Coated |
| Maximum Noise Level | 77 dBA |
| Temperature Thermostat Opens | Not Applicable |
| Motor Horsepower | 0.3333 HP |
| Overall Width | 25-1/4 in |
| Wattage | Not Applicable |
| Assembled | Assembled |
| Motor Speed | 1,140 rpm, 1,725 rpm |
| Noise Level @ 0.100 in SP @ 5 ft | Not Applicable |
| Supply Airflow @ 0.000 in SP | 3,220 cfm |
| For Minimum Wall Thickness | 6 in |
| Number of Fans | 1 |
| Blade Diameter | 20 in |
| Guard Finish | Chrome Plated |
| For Cut-Out Width | 23 in |
| Nameplate Voltage | 115V AC |
| Drive Type | Direct Drive |
| Number of Speeds | 2 |
| Power Cord Length | Not Applicable |
| Overall Diameter | 20 in |
| Duct Height | Not Applicable |
| Hazardous Location Class | Not Applicable |
| Control Type | Toggle Switch |
| Housing Material | Steel |
| Duct Diameter | Not Applicable |
| Maximum Airflow | 3,440 cfm |
| For Maximum Wall Thickness | 6 in |
| For Cut-Out Height | 23 in |
| Guard Type | Exhaust |
| Housing Finish | Unfinished |
| Ventilation Type | Exhaust |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
