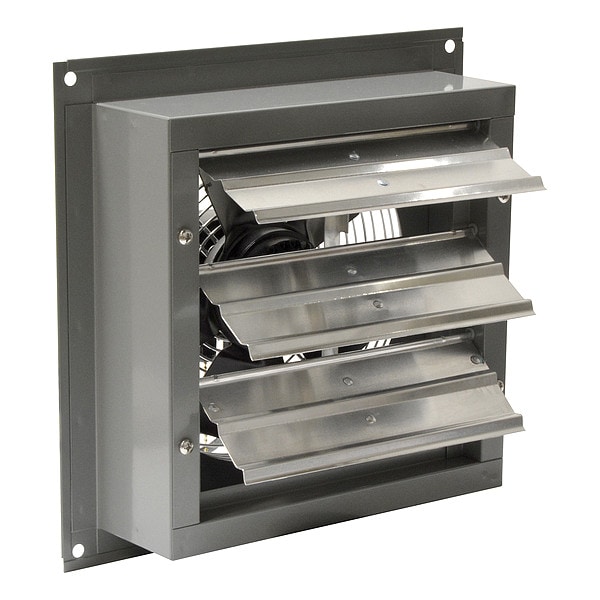

Exhaust Fan, 1,150 RPM, 1,480 RPM
| Motor Type | External Rotor |
|---|---|
| Item | Exhaust Fan |
| Bearing Type | Ball |
| Standards | cETLus, OSHA |
| Includes | Not Applicable |
| Phase | 1 |
| Motor Enclosure | Totally Enclosed Air Over |
| Number of Blades | 3 |
| Frame Material | Steel |
| For Maximum Wall Thickness | 6 in |
| Guard Type | Intake |
| For Minimum Wall Thickness | 6 in |
| Includes Dehumidistat | No |
| For Cut-Out Width | 13 in |
| Wattage | Not Applicable |
| Full Load Current | 0.5 A |
| Number of Fans | 1 |
| Overall Width | 13-1/4 in |
| Nameplate Voltage | 115V AC |
| Temperature Thermostat Opens | Not Applicable |
| Number of Speeds | 2 |
| Duct Width | Not Applicable |
| Fan Style | Shutter-Mounted |
| Maximum Ambient Operating Temperature | 104 deg F |
| Housing Finish | Unfinished |
| Noise Level @ 0.000 in SP @ 5 ft | 6.5 sones |
| Motor Speed | 1,150 rpm, 1,480 rpm |
| Guard Material | Steel |
| Exhaust Airflow @ 0.000 in SP | 500 cfm |
| Housing Material | Steel |
| Overall Depth | 7-7/8 in |
| Duct Diameter | Not Applicable |
| Maximum Coverage Area | Not Applicable |
| Maximum Static Pressure | 0.25 in wg |
| Overall Height | 13-1/4 in |
| Manufacturer Warranty Length | 1 yr |
| Maximum Airflow | 500 cfm |
| Ventilation Type | Exhaust |
| Assembled | Assembled |
| For Cut-Out Height | 13 in |
| Guard Finish | Chrome Plated |
| Supply Airflow @ 0.000 in SP | 420 cfm |
| Overall Diameter | 10 in |
| Control Type | Pull Chain |
| Grille Color | Gray |
| Duct Shape | Not Applicable |
| Electrical Connection | Plug-In |
| Maximum Noise Level | 55 dBA |
| Noise Level @ 0.100 in SP @ 5 ft | Not Applicable |
| Motor Horsepower | 2/25 hp |
| Duct Height | Not Applicable |
| Blade Diameter | 10 in |
| Drive Type | Direct Drive |
| Frame Finish | Powder Coated |
| Blade Material | Galvanized Steel |
| Power Cord Length | 9 ft |
| Hazardous Location Class | Not Applicable |
| Ring-Mount Style | Flange |
| Includes Motor | Yes |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
