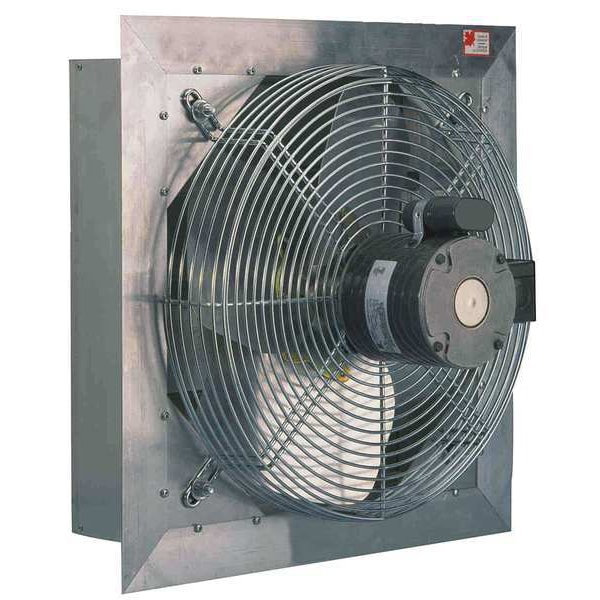

Exhaust Fan, 24 In, 115/230V, 1/3hp, 1100rpm
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Exhaust/Supply Fan Item | Exhaust Fan |
| Blade Dia. | 24 in |
| Number of Speeds | Variable |
| Fan Voltage | 115/230V AC |
| CFM @ 0.000-In. SP | 5,500 |
| Exhaust/Supply Fan Motor HP | 0.3333 HP |
| Square Opening Required | 20-1/2 to 30 in |
| Width | 28-3/4 in |
| Height | 28 3/4 in |
| Item | Shutter Mount Exhaust Fan |
| Max. Depth | 16 in |
| Bearing Type | Ball |
| Motor RPM | 1,100 |
| Hz | 60 |
| Number of Blades | 3 |
| CFM @ 0.250-In. SP | 5100 |
| Motor Type | 3-Phase |
| Standards | OSHA Compliant |
| Guard Material | Steel |
| Max. Ambient Temp. | 104 deg F |
| Phase | 1 |
| Motor Enclosure | Totally Enclosed Air Over |
| Speed Control Item Number | MC5, MC5-230 |
| Thermal Protection | Auto |
| Frame Material | Aluminum |
| CFM @ 0.125-In. SP | 5310 |
| Drive Package Included | No |
| Full Load Amps | 4.4/2.2 |
| Wire Guard Finish | Chrome |
| Motor Insulation | Class B |
| Frame Finish | Aluminum |
| Blade Material | Steel |
| Includes | Shutter |
| Overall Height | 28-3/4 in |
| Voltage | 115/230V |
| Overall Width | 28-3/4 in |
| Housing Finish | Aluminum |
| Blade Diameter | 24 in |
| Maximum Airflow | 5,500 cfm |
| Overall Diameter | 28-3/4 in |
| Frequency | 50 Hz |
| Method of Construction | Stamped |
| Full Load Current | 4.4 A |
| For Cut-Out Height | 26 in |
| Supply Airflow @ 0.000 in SP | 5,500 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | 21 sones |
| Drive Type | Direct Drive |
| For Maximum Wall Thickness | 5 in |
| Exhaust Airflow @ 0.100 in SP | 5,400 cfm |
| Fan Style | Shutter-Mounted |
| For Minimum Wall Thickness | 5 in |
| Includes Dehumidistat | No |
| Maximum Ambient Operating Temperature | 104 deg F |
| For Cut-Out Width | 26 in |
| Ventilation Type | Exhaust |
| Includes Grill | No |
| Wattage | 506 W |
| Duct Diameter | Not Applicable |
| Discharge Direction | Horizontal |
| Exhaust Airflow @ 0.125 in SP | 5,310 cfm |
| Exhaust Airflow @ 0.250 in SP | 5,100 cfm |
| For Cut-Out Length | 26 in |
| Maximum Noise Level | 21 sones |
| Control Type | Rotary Dial |
| Manufacturer Warranty Length | 1 yr |
| Motor Speed | 1,100 rpm |
| Vent Design | Ductless |
| Housing Material | Aluminum |
| Overall Depth | 17 in |
| Guard Type | Intake |
| Electrical Connection | Hardwired |
| Duct Height | Not Applicable |
| Number of Fans | 1 |
| Assembled | Assembled |
| Motor Horsepower | 0.3333 HP |
| Duct Shape | Not Applicable |
| Speed Controllable | Yes |
| Exhaust Airflow @ 0.000 in SP | 5,500 cfm |
| Blade Finish | Galvanized |
| Includes Motor | Yes |
| Duct Width | Not Applicable |
| Guard Finish | Chrome |
| Nameplate Voltage | 115/230V AC |
| Noise Level @ 0.000 in SP @ 5 ft | 21 sones |
| Mounting Orientation | Horizontal |
| Speed Control | 23N630,23N629 |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
