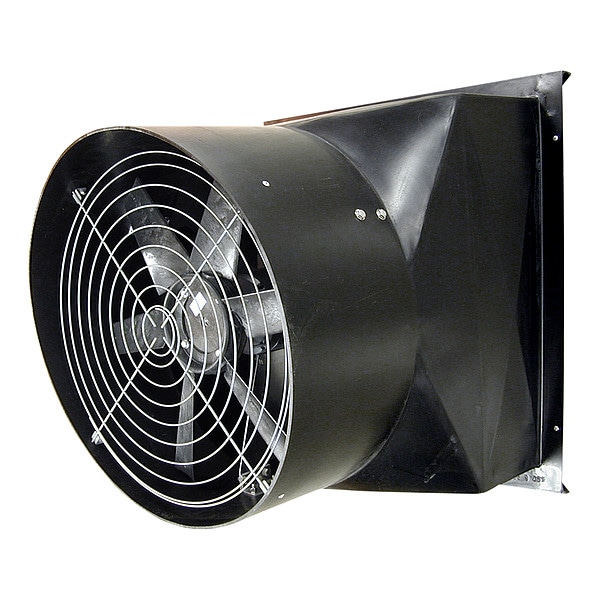

Exhaust Fan, Assembled, 1,625 RPM
| Item | Exhaust Fan |
|---|---|
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Type | Single Phase |
| Includes Dehumidistat | No |
| Guard Material | Steel |
| Control Type | Not Applicable |
| Guard Finish | Powder Coated |
| Manufacturer Warranty Length | 1 yr |
| Includes | Not Applicable |
| Housing Material | Polyethylene |
| Duct Width | Not Applicable |
| Ventilation Type | Exhaust |
| Exhaust Airflow @ 0.000 in SP | 5,800 cfm |
| Overall Depth | Not Applicable |
| Phase | 1 |
| For Maximum Wall Thickness | 6 in |
| Overall Width | Not Applicable |
| Overall Height | Not Applicable |
| Frequency | 60 Hz |
| For Minimum Wall Thickness | 6 in |
| Guard Type | Exhaust |
| Maximum Static Pressure | 0.25 in wg |
| Number of Blades | 3 |
| Maximum Airflow | 5,820 cfm |
| Temperature Thermostat Opens | Not Applicable |
| Power Cord Length | Not Applicable |
| Wattage | Not Applicable |
| For Cut-Out Width | 27-1/4 in |
| Housing Finish | Unfinished |
| Ring-Mount Style | Flange |
| Duct Shape | Not Applicable |
| Motor Horsepower | 0.5 HP |
| Blade Finish | Galvanized |
| Blade Diameter | 24 in |
| Blade Material | Polypropylene |
| Overall Diameter | Not Applicable |
| For Cut-Out Height | 27-1/4 in |
| Duct Diameter | Not Applicable |
| Motor Speed | 1,625 rpm |
| Duct Height | Not Applicable |
| Maximum Coverage Area | Not Applicable |
| Number of Speeds | 1 |
| Hazardous Location Class | Not Applicable |
| Assembled | Assembled |
| Nameplate Voltage | 115V AC |
| Frame Material | Plastic |
| Frame Finish | Not Applicable |
| Supply Airflow @ 0.000 in SP | 3,730 cfm |
| Drive Type | Direct Drive |
| Fan Style | Shutter-Mounted |
| Full Load Current | 2.5 A, 5 A |
| Includes Motor | Yes |
| Maximum Noise Level | Not Applicable |
| Noise Level @ 0.000 in SP @ 5 ft | 40 sones |
| Standards | BESS Labs |
| Bearing Type | Ball |
| Noise Level @ 0.100 in SP @ 5 ft | Not Applicable |
| Number of Fans | 1 |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
