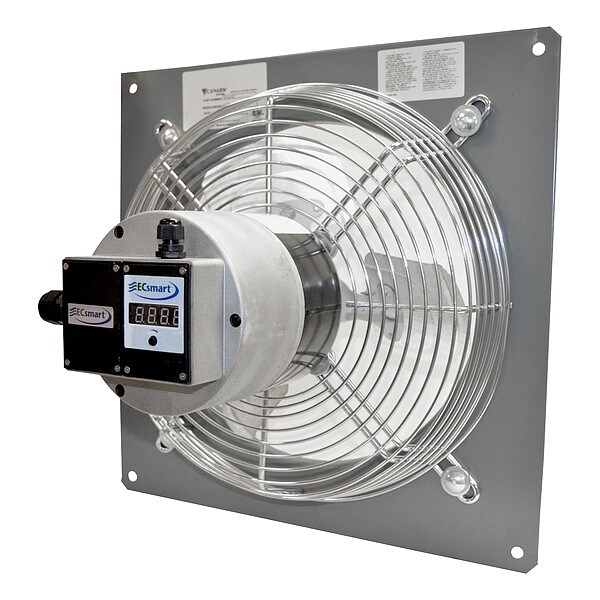

Exhaust Fan, Assembled, 1,800 RPM
| Item | Exhaust Fan |
|---|---|
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Type | Electronically Commutated |
| Phase | 1 |
| Power Cord Length | Not Applicable |
| Overall Width | 17-1/4 in |
| Nameplate Voltage | 115/208/230V AC |
| Duct Height | Not Applicable |
| Control Type | Rotary Dial |
| Frequency | 60 Hz |
| Includes | Not Applicable |
| Maximum Noise Level | 60 dBA |
| Maximum Coverage Area | Not Applicable |
| Electrical Connection | Hardwired |
| Includes Motor | Yes |
| Wattage | Not Applicable |
| Guard Type | Intake |
| Blade Material | Aluminum |
| Exhaust Airflow @ 0.000 in SP | 1,650 cfm |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Number of Fans | 1 |
| Housing Finish | Unfinished |
| Duct Diameter | Not Applicable |
| Guard Finish | Chrome Plated |
| Motor Horsepower | 0.25 HP |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Ventilation Type | Exhaust |
| Standards | cETLus |
| Duct Width | Not Applicable |
| Overall Depth | 11 in |
| Noise Level @ 0.100 in SP @ 5 ft | Not Applicable |
| Fan Style | Panel |
| Duct Shape | Not Applicable |
| Assembled | Assembled |
| Drive Type | Direct Drive |
| For Cut-Out Width | 12 in |
| Temperature Thermostat Opens | Not Applicable |
| Full Load Current | 1.3 A, 1.7 A, 2.8 A |
| Noise Level @ 0.000 in SP @ 5 ft | 9.2 sones |
| Motor Speed | 1,800 rpm |
| Ring-Mount Style | Flange |
| Housing Material | Steel |
| Manufacturer Warranty Length | 1 yr |
| Guard Material | Steel |
| Number of Speeds | Variable |
| Thermal Protection | Yes |
| For Minimum Wall Thickness | 6 in |
| Maximum Airflow | 1,650 cfm |
| Overall Height | 17-1/4 in |
| Supply Airflow @ 0.000 in SP | 1,540 cfm |
| Number of Blades | 3 |
| Blade Diameter | 12 in |
| For Maximum Wall Thickness | 6 in |
| Hazardous Location Class | Not Applicable |
| For Cut-Out Height | 12 in |
| Includes Dehumidistat | No |
| Maximum Static Pressure | 0.25 in wg |
| Overall Diameter | Not Applicable |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
