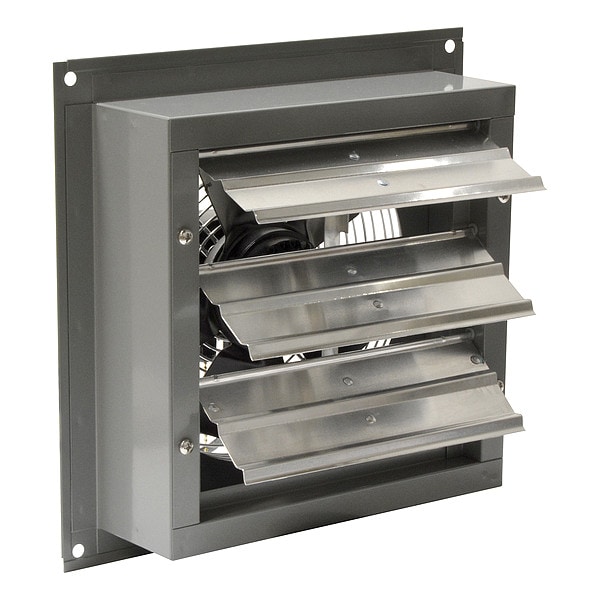

Exhaust Fan, Assembled, 1,800 RPM
| Standards | OSHA |
|---|---|
| Number of Blades | 3 |
| Phase | 1 |
| Frame Material | Steel |
| Motor Type | Electronically Commutated |
| Motor Enclosure | Totally Enclosed Air Over |
| Item | Exhaust Fan |
| Includes | Not Applicable |
| Exhaust Airflow @ 0.000 in SP | 690 cfm |
| Maximum Noise Level | 56 dBA |
| Overall Height | 15-1/4 in |
| Supply Airflow @ 0.000 in SP | 420 cfm |
| Includes Dehumidistat | No |
| Includes Motor | Yes |
| Fan Style | Box |
| Control Type | Rotary Dial |
| Noise Level @ 0.100 in SP @ 5 ft | Not Applicable |
| Power Cord Length | Not Applicable |
| Overall Depth | 13-1/2 in |
| Hazardous Location Class | Not Applicable |
| Guard Finish | Chrome Plated |
| Frame Finish | Powder Coated |
| Maximum Airflow | 690 cfm |
| Blade Diameter | 10 in |
| Ventilation Type | Exhaust |
| Maximum Static Pressure | 0.25 in wg |
| Guard Material | Steel |
| For Cut-Out Width | 13 in |
| Duct Height | Not Applicable |
| Duct Shape | Not Applicable |
| Noise Level @ 0.000 in SP @ 5 ft | 7 sones |
| Assembled | Assembled |
| Housing Finish | Unfinished |
| Number of Speeds | Variable |
| Motor Horsepower | 0.25 HP |
| Duct Diameter | Not Applicable |
| Wattage | Not Applicable |
| Ring-Mount Style | Flange |
| Maximum Coverage Area | Not Applicable |
| Guard Type | Intake |
| Overall Diameter | 10 in |
| Overall Width | 15-1/4 in |
| Blade Material | Aluminum |
| Motor Speed | 1,800 rpm |
| Manufacturer Warranty Length | 1 yr |
| Full Load Current | 1.3 A, 1.7 A, 2.8 A |
| Nameplate Voltage | 115/208/230V AC |
| Maximum Ambient Operating Temperature | 104 deg F |
| Number of Fans | 1 |
| For Maximum Wall Thickness | 6 in |
| Drive Type | Direct Drive |
| Housing Material | Steel |
| Temperature Thermostat Opens | Not Applicable |
| For Minimum Wall Thickness | 6 in |
| For Cut-Out Height | 13 in |
| Duct Width | Not Applicable |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
