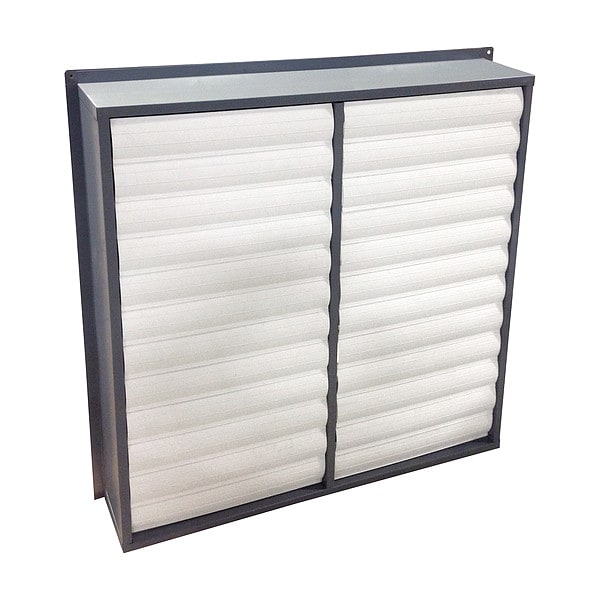

Exhaust Fan, Assembled, 850 RPM
| Item | Exhaust Fan |
|---|---|
| Motor Enclosure | Totally Enclosed Air Over |
| Thermal Protection | Yes |
| Frame Material | Steel |
| Maximum Noise Level | 84 dBA |
| For Cut-Out Width | 51 in |
| For Minimum Wall Thickness | 6 in |
| Includes Motor | Yes |
| Standards | cETLus |
| Overall Diameter | 48 in |
| Overall Width | 53-1/4 in |
| Housing Finish | Unfinished |
| Duct Diameter | Not Applicable |
| Supply Airflow @ 0.000 in SP | 12,610 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | Not Applicable |
| Nameplate Voltage | 230V AC |
| Temperature Thermostat Opens | Not Applicable |
| Frame Finish | Powder Coated |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Ring-Mount Style | Flange |
| Number of Speeds | 1 |
| Number of Blades | 3 |
| Exhaust Airflow @ 0.000 in SP | 14,470 cfm |
| Includes Dehumidistat | No |
| Fan Style | Box |
| Overall Height | 53-1/4 in |
| Housing Material | Steel |
| Control Type | Toggle Switch |
| Hazardous Location Class | Not Applicable |
| Duct Shape | Not Applicable |
| Blade Diameter | 48 in |
| Guard Finish | Chrome Plated |
| Maximum Airflow | 14,470 cfm |
| Includes | Not Applicable |
| Motor Speed | 850 RPM |
| Number of Fans | 1 |
| Guard Type | Exhaust |
| Ventilation Type | Exhaust |
| For Maximum Wall Thickness | 6 in |
| Drive Type | Direct Drive |
| Motor Horsepower | 1 HP |
| Guard Material | Steel |
| Power Cord Length | Not Applicable |
| Phase | 1 |
| For Cut-Out Height | 51 in |
| Duct Width | Not Applicable |
| Grille Color | Gray |
| Maximum Static Pressure | 0.25 in wg |
| Full Load Current | 5 A |
| Overall Depth | 18 in |
| Noise Level @ 0.000 in SP @ 5 ft | 49 sones |
| Assembled | Assembled |
| Duct Height | Not Applicable |
| Manufacturer Warranty Length | 1 yr |
| Maximum Coverage Area | Not Applicable |
| Wattage | Not Applicable |
| Blade Material | Galvanized Steel |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
