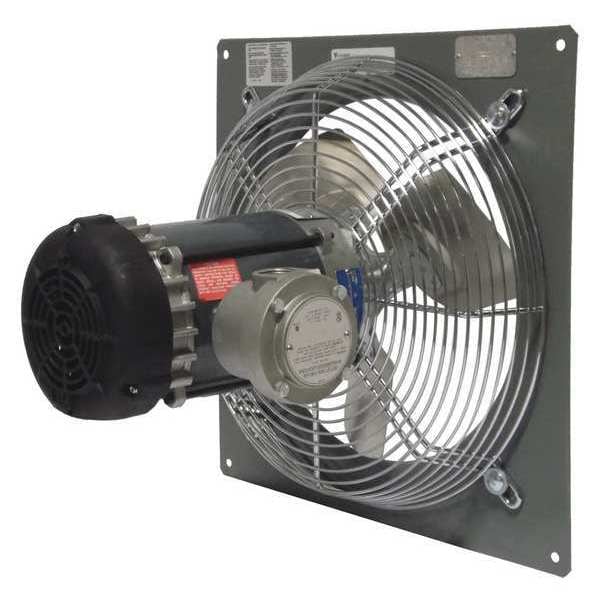

Exhaust Fan, Hazardous Location, 16 In
| Item | Panel Mounted Hazardous Location Exhaust Fan |
|---|---|
| Venturi Depth (In.) | 5/8 |
| Phase | 1 |
| Frame Finish | Powder Coated |
| Hz | 60 |
| CFM @ 0.250-In. SP | 2,270 cfm |
| CFM @ 0.000-In. SP | 2,580 cfm |
| Drive Package Included | No |
| Number of Blades | 3 |
| Exhaust/Supply Fan Motor HP | 1/3 hp |
| Max. Depth (In.) | 13-3/4 |
| Full Load Amps | 6.6/3.1-3.3 |
| Motor Enclosure | Totally Enclosed Air Over |
| Dimension C (In.) | 20 |
| Blade Dia. | 16 in |
| Type | Explosion Proof |
| Height (In.) | 21-1/4 |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Shaft Dia. (In.) | 1/2 |
| Watts | 250 |
| Venturi Clearance Dia. (In.) | 1/8 |
| Frame Material | Steel |
| Bearing Type | Ball |
| Agency Compliance | cETLus |
| Dimension A (In.) | 21-1/4 |
| Propeller Material | Aluminum |
| Motor RPM | 1,725 RPM |
| Flange Width (In.) | 1-1/2 |
| Includes | EPFC Motor Enclosure, Explosion Proof Motor, Wire Guard |
| Inside Dia. (In.) | 20 |
| Fan Voltage | 115/208-230V AC |
| Drive Package With Motor Included | No |
| Sones @ 0.000-In. SP @ 5 Ft. | 16 |
| Motor Type | Explosion Proof |
| Max. Ambient Temp. (F) | 104 |
| Mounting Holes O.C. (In.) | 20 |
| Hazardous Location Class | Class I, Div 1, Group C and D; Class II, Div 1, Group F and G |
| Dimension B (In.) | 13-3/4 |
| Outside Dia. (In.) | 21-1/4 |
| Mounting Position | Horizontal |
| CFM @ 0.125-In. SP | 2,430 cfm |
| For Use With | General Ventilation Applications, Hazardous Locations, Explosion Proof, Panel Mounted Exhaust Fan |
| Width (In.) | 21-1/4 |
| Motor Insulation | Class B |
| Dimension D (In.) | 20 |
| Flange Width | 1-1/2 in |
| Standards | OSHA Compliant |
| Venturi Depth | 5/8 in |
| Maximum Ambient Operating Temperature | 104 Degrees F |
| Maximum Noise Level | 17 sones |
| Full Load Current | 0.5 A |
| Includes Grill | No |
| Includes Motor | No |
| Exhaust Airflow @ 0.000 in SP | 2,580 cfm |
| Overall Depth | 13-3/4 in |
| Motor Speed | 1,725 rpm |
| Blade Material | Aluminum |
| Shaft Diameter | 1/2 in |
| Mounting Orientation | Horizontal |
| Guard Finish | Chrome |
| Vent Design | Ductless |
| Control Type | Toggle Switch |
| For Cut-Out Width | 20 in |
| For Cut-Out Diameter | 20 in |
| Housing Finish | Powder-Coated |
| Assembled | Assembled |
| Number of Speeds | 1 |
| Overall Width | 21-1/4 in |
| Overall Diameter | 21-1/4 in |
| Electrical Connection | Hardwired |
| Housing Material | Steel |
| Fan Style | Panel |
| Nameplate Voltage | 115/208-230V AC |
| Includes Dehumidistat | No |
| Duct Height | Not Applicable |
| Wattage | 250 W |
| Ventilation Type | Exhaust |
| Noise Level @ 0.100 in SP @ 5 ft | 16 sones |
| Exhaust Airflow @ 0.250 in SP | 2,270 cfm |
| Drive Type | Direct Drive |
| Maximum Airflow | 2,580 cfm |
| Speed Controllable | No |
| For Cut-Out Height | 20 in |
| Guard Material | Steel |
| Discharge Direction | Horizontal |
| Exhaust Airflow @ 0.100 in SP | 2,480 cfm |
| Blade Diameter | 16 in |
| Venturi Diameter | 1/8 in |
| Method of Construction | Stamped |
| Duct Width | Not Applicable |
| Exhaust Airflow @ 0.125 in SP | 2,430 cfm |
| Duct Shape | Not Applicable |
| Supply Airflow @ 0.000 in SP | 2,580 cfm |
| Number of Fans | 1 |
| Noise Level @ 0.000 in SP @ 5 ft | 17 sones |
| Duct Diameter | Not Applicable |
| Motor Horsepower | 0.3333 HP |
| Manufacturer Warranty Length | 1 yr |
| Frequency | 60 Hz |
| Overall Height | 21-1/4 in |
| Guard Type | Intake |
| Speed Control | No |
| Voltage | 115/208-230 |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
