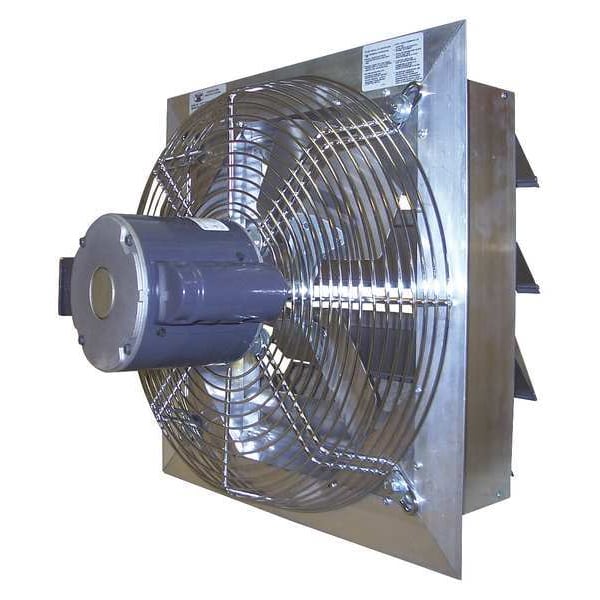

Exhaust Fan, Industrial/Commercial, 42 in
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 42 in |
| Fan Voltage | 230 V AC |
| Phase | 1 |
| Exhaust/Supply Fan Motor HP | 1 HP |
| Number of Blades | 3 |
| CFM @ 0.000-In. SP | 14,900 |
| Motor RPM | 850 |
| Full Load Amps | 5.5 |
| Number of Speeds | 1 |
| Frame Finish | Powder Coated |
| Item | Exhaust Fan |
| Hz | 60 |
| Motor Type | 3-Phase |
| Max. Depth | 17 3/4 in |
| Height | 47-1/4 in |
| Blade Material | Aluminum |
| Max. Ambient Temp. | 104 Degrees F |
| CFM @ 0.125-In. SP | 13,210 |
| Frame Material | Aluminum |
| Width | 47-1/4 in |
| Motor Enclosure | Totally Enclosed Air Over |
| CFM @ 0.250-In. SP | 10,800 |
| Bearing Type | Ball |
| Square Opening Required | Greater than 30 in |
| Motor Insulation | Class B |
| Speed Control | No |
| Includes | Aluminum Blades, Aluminum Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutters, Wire Chrome Plated Guard |
| Mounting Position | Vertical |
| Watts | 750 |
| Frequency | 50 Hz |
| Motor Horsepower | 1 HP |
| Discharge Direction | Horizontal |
| For Cut-Out Length | 45 in |
| Nameplate Voltage | 230V AC |
| Overall Diameter | 47-3/4 in |
| For Cut-Out Height | 45 in |
| Electrical Connection | Hardwired |
| Number of Fans | 1 |
| Ventilation Type | Exhaust |
| Guard Type | Intake |
| Exhaust Airflow @ 0.100 in SP | 13,550 cfm |
| Maximum Ambient Operating Temperature | 104 deg F |
| For Minimum Wall Thickness | 5 in |
| Includes Motor | Yes |
| Guard Material | Steel |
| Fan Style | Shutter-Mounted |
| Overall Height | 47-3/4 in |
| Vent Design | Ductless |
| Noise Level @ 0.000 in SP @ 5 ft | 49 sones |
| Full Load Current | 5 A |
| Exhaust Airflow @ 0.125 in SP | 13,210 cfm |
| Speed Controllable | No |
| Overall Depth | 16 in |
| For Cut-Out Width | 45 in |
| Guard Finish | Powder Coated |
| Maximum Airflow | 14,900 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | 49 sones |
| Assembled | Assembled |
| For Maximum Wall Thickness | 5 in |
| Housing Material | Aluminum |
| Includes Grill | No |
| Wattage | 1,150 W |
| Supply Airflow @ 0.000 in SP | 14,900 cfm |
| Drive Type | Direct Drive |
| Mounting Orientation | Horizontal |
| Overall Width | 47-3/4 in |
| Exhaust Airflow @ 0.250 in SP | 10,800 cfm |
| Includes Dehumidistat | No |
| Method of Construction | Stamped |
| Maximum Noise Level | 49 sones |
| Manufacturer Warranty Length | 1 yr |
| Exhaust Airflow @ 0.000 in SP | 14,900 cfm |
| Motor Speed | 850 RPM |
| Control Type | Rotary Dial |
| Blade Diameter | 42 in |
| Housing Finish | Aluminum |
| Voltage | 230 |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
