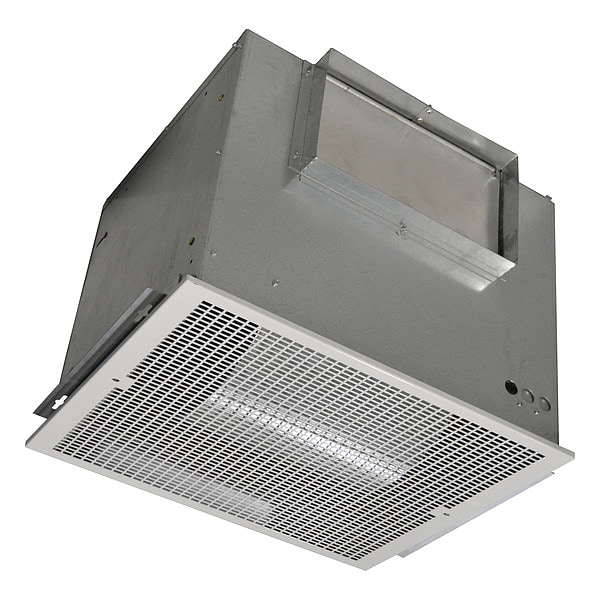

Exhaust Fan, Metal, 18" H, 22" W
| Includes | Grille |
|---|---|
| Phase | 1 |
| Housing Material | Metal |
| Number of Speeds | Variable |
| Lighted | Without Light |
| Heater | Without Heater |
| Wattage | 372 W |
| Grille Material | Metal |
| Profile Height Family | Low |
| Overall Height | 18 in |
| Standards | cETLus |
| Exhaust Airflow @ 0.250 in SP | 1,444 cfm |
| Motor Enclosure | Enclosed |
| Vent Design | Ducted |
| Duct Diameter | Not Applicable |
| Maximum Noise Level | 8.4 sones |
| Includes Grill | Yes |
| Item | Exhaust Fan |
| Maximum Airflow | 1,656 cfm |
| Overall Width | 22 in |
| Duct Shape | Rectangle |
| Duct Width | 18 in |
| Blower Wheel Curve | Forward |
| Motor Type | Electronically Commutated |
| Duct Height | 22 in |
| Overall Depth | 18-1/8 in |
| Full Load Current | 4.9 A |
| Exhaust Airflow @ 0.100 in SP | 1,592 cfm |
| Exhaust Airflow @ 0.000 in SP | 1,656 cfm |
| Heater Type | Not Applicable |
| Night Light Technology | Not Applicable |
| Heater Wattage | Not Applicable |
| Primary Light Wattage | Not Applicable |
| Nameplate Voltage | 115 V AC |
| Sensor Type | None |
| Discharge Direction | Horizontal |
| Primary Lighting Technology | Not Applicable |
| Housing Finish | Unfinished |
| Noise Level @ 0.100 in SP @ 5 ft | 8.4 sones |
| Maximum Coverage Area | Not Applicable |
| Motor Horsepower | Not Applicable |
| Blade Diameter | 12 7/8 in |
| Ventilation Type | Exhaust |
| Includes Dehumidistat | No |
| Blade Material | Plastic |
| Includes Motor | Yes |
| Frame Finish | Not Applicable |
| Supply Airflow @ 0.000 in SP | 1,592 cfm |
| For Maximum Wall Thickness | 6 in |
| Maximum Static Pressure | 0.125 in wg |
| Noise Level @ 0.125 in SP @ 5 ft | 8.4 sones |
| For Cut-Out Height | Not Applicable |
| Guard Finish | Not Applicable |
| Motor Speed | Not Applicable |
| Noise Level @ 0.000 in SP @ 5 ft | Not Applicable |
| Hazardous Location Class | Not Applicable |
| Speed Controllable | Yes |
| For Cut-Out Width | Not Applicable |
| Control Type | Not Applicable |
| Power Cord Length | Not Applicable |
| Ring-Mount Style | Flange |
| Guard Material | Steel |
| Duct Length | Not Applicable |
| For Minimum Wall Thickness | 6 in |
| Number of Blades | 3 |
| Temperature Thermostat Opens | Not Applicable |
| Number of Fans | 1 |
| Guard Type | Exhaust |
| Overall Diameter | Not Applicable |
| Drive Type | Direct Drive |
| Assembled | Assembled |
| Frame Material | Steel |
| Exhaust Airflow @ 0.600 in SP | Not Applicable |
| Exhaust Airflow @ 0.800 in SP | Not Applicable |
| Blower Wheel Material | Plastic |
| Exhaust Airflow @ 0.400 in SP | 1,280 cfm |
| Wall Thickness | 6 in |
| Motor Output Power | 372 W |
| Profile Width Family | Single-Wide |
| Fan Wattage | 372 W |
| Frequency | 60 Hz |
| Noise Level @ 0.250 in SP @ 5 ft | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
