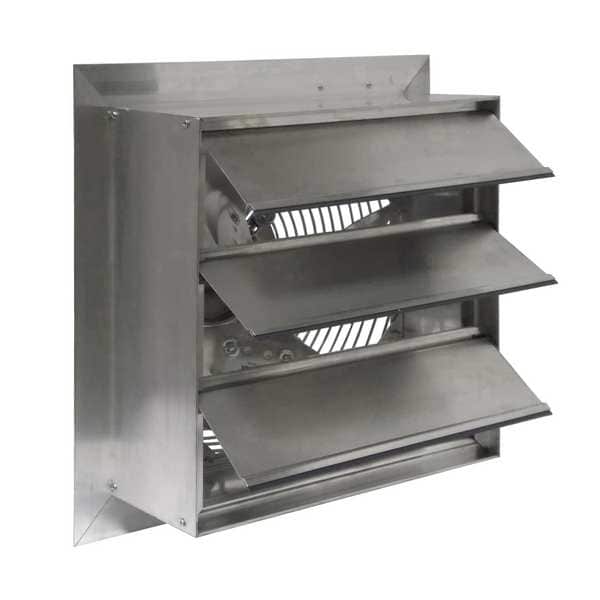

ExtFn, 12In Bld Dia, Galvalm, 115V
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 12 in |
| Number of Speeds | 2 |
| Fan Voltage | 115 V |
| CFM @ 0.000-In. SP | 1670/1100 cfm |
| Exhaust/Supply Fan Motor HP | 0.25 HP |
| Square Opening Required | 13 3/4 in |
| Width | 16-3/4 in |
| Height | 16 3/4 in |
| Item | Exhaust Fan |
| Motor Insulation | Class B |
| Standards | OSHA |
| Frame Finish | Aluminum |
| Max. Depth | 16 in |
| Thermal Protection | Yes |
| Max. Ambient Temp. | 40 deg C |
| Sones @ 0.000-In. SP @ 5 Ft. | 12 sones |
| Speed Control Item Number | Not Applicable |
| CFM @ 0.250-In. SP | 1450/625 cfm |
| Motor Enclosure | Totally Enclosed Air Over |
| Bearing Type | Ball |
| CFM @ 0.125-In. SP | 1575/900 cfm |
| Frame Material | Aluminum |
| Motor Type | PSC |
| Includes | Intake Guard, Shutter |
| Motor RPM | 1725/1140 RPM |
| Full Load Amps | 3.4 A |
| Number of Blades | 3 |
| Hz | 50 |
| Blade Material | Steel |
| Guard Material | Chrome Plated Wire |
| Phase | 1 |
| Wire Guard Finish | Chrome |
| Overall Width | 16-3/4 in |
| Nameplate Voltage | 115V AC |
| Blade Diameter | 12 in |
| Full Load Current | 3.4 A |
| Motor Horsepower | 0.25 HP |
| Ventilation Type | Exhaust |
| Overall Height | 16-3/4 in |
| Motor Speed | 1,725 rpm |
| Frequency | 50 Hz |
| Overall Depth | 16 in |
| Assembled | Assembled |
| Exhaust Airflow @ 0.250 in SP | 1,450 cfm |
| Exhaust Airflow @ 0.125 in SP | 1,575 cfm |
| Noise Level @ 0.000 in SP @ 5 ft | 12 sones |
| Maximum Noise Level | 12 sones |
| Maximum Ambient Operating Temperature | 104 deg F |
| Exhaust Airflow @ 0.000 in SP | 1,670 cfm |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
