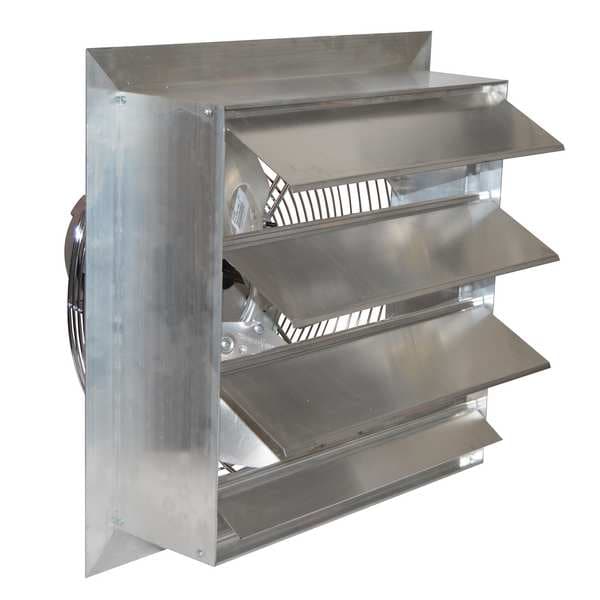

ExtFn, 14In Bld Dia, Galvalume, 115/230V
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 14 in |
| Number of Speeds | 1 |
| Fan Voltage | 115/230V AC |
| CFM @ 0.000-In. SP | 2170 cfm |
| Exhaust/Supply Fan Motor HP | 0.3333 HP |
| Square Opening Required | 15 3/4 in |
| Width | 18-3/4 in |
| Height | 18 3/4 in |
| Item | Exhaust Fan |
| Standards | OSHA |
| Includes | Intake Guard, Shutter |
| CFM @ 0.250-In. SP | 1900 cfm |
| Speed Control Item Number | Not Applicable |
| Motor Enclosure | Totally Enclosed Air Over |
| Bearing Type | Ball |
| Motor RPM | 1700 RPM |
| Full Load Amps | 5.0/2.5 A |
| Wire Guard Finish | Chrome |
| Thermal Protection | Yes |
| CFM @ 0.125-In. SP | 1950 cfm |
| Frame Material | Aluminum |
| Sones @ 0.000-In. SP @ 5 Ft. | 14 sones |
| Motor Type | PSC |
| Number of Blades | 3 |
| Max. Depth | 16 in |
| Guard Material | Chrome Plated Wire |
| Frame Finish | Aluminum |
| Hz | 50 |
| Blade Material | Steel |
| Max. Ambient Temp. | 40 deg C |
| Phase | 1 |
| Motor Insulation | Class B |
| Exhaust Airflow @ 0.000 in SP | 2,170 cfm |
| Blade Diameter | 14 in |
| Nameplate Voltage | 115/230V AC |
| Overall Height | 18-3/4 in |
| Overall Depth | 16 in |
| Frequency | 50 Hz |
| Motor Horsepower | 0.3333 HP |
| Assembled | Assembled |
| Maximum Ambient Operating Temperature | 104 deg F |
| Maximum Noise Level | 14 sones |
| Full Load Current | 5 A |
| Noise Level @ 0.000 in SP @ 5 ft | 14 sones |
| Exhaust Airflow @ 0.250 in SP | 1,900 cfm |
| Motor Speed | 1,700 rpm |
| Overall Width | 18-3/4 in |
| Exhaust Airflow @ 0.125 in SP | 1,950 cfm |
| Ventilation Type | Exhaust |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
