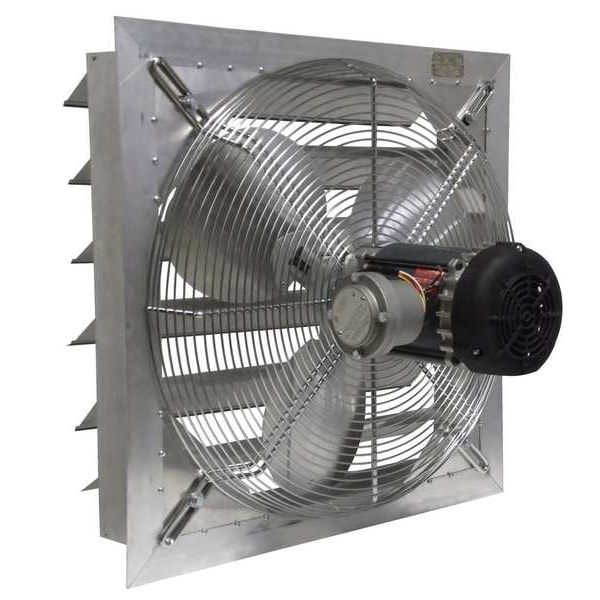

ExtFn, 24In Bld Dia, Galvalume, 230/460V
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 24 in |
| Number of Speeds | 1 |
| Fan Voltage | 230/460V AC |
| CFM @ 0.000-In. SP | 5520 cfm |
| Exhaust/Supply Fan Motor HP | 0.3333 HP |
| Square Opening Required | 25 3/4 in |
| Width | 28-3/4 in |
| Height | 28 3/4 in |
| Item | Exhaust Fan |
| Motor Type | Explosion Proof Motor |
| Wire Guard Finish | Chrome |
| Speed Control Item Number | Not Applicable |
| Frame Material | Aluminum |
| Motor Insulation | Class 1, Class 2 |
| Max. Ambient Temp. | 40 deg C |
| Phase | 3 |
| CFM @ 0.250-In. SP | 5130 cfm |
| Guard Material | Chrome Plated Wire |
| Sones @ 0.000-In. SP @ 5 Ft. | 29 sones |
| CFM @ 0.125-In. SP | 5330 cfm |
| Standards | OSHA |
| Hz | 50 |
| Motor Enclosure | Totally Enclosed Air Over |
| Blade Material | Steel |
| Motor RPM | 1725 RPM |
| Includes | Intake Guard, Shutter |
| Thermal Protection | No |
| Full Load Amps | 6.6/3.1-3.3 |
| Number of Blades | 3 |
| Frame Finish | Aluminum |
| Max. Depth | 18-3/4 in |
| Bearing Type | Ball |
| Exhaust Airflow @ 0.125 in SP | 5,330 cfm |
| Assembled | Assembled |
| Motor Horsepower | 0.3333 HP |
| Maximum Noise Level | 29 sones |
| Ventilation Type | Exhaust |
| Blade Diameter | 24 in |
| Exhaust Airflow @ 0.000 in SP | 5,520 cfm |
| Noise Level @ 0.000 in SP @ 5 ft | 29 sones |
| Motor Speed | 1,725 rpm |
| Maximum Ambient Operating Temperature | 104 deg F |
| Overall Height | 28-3/4 in |
| Frequency | 50 Hz |
| Exhaust Airflow @ 0.250 in SP | 5,130 cfm |
| Overall Width | 28-3/4 in |
| Nameplate Voltage | 230/460V AC |
| Hazardous Location Class | Class I, Div 1, Group C and D; Class II, Div 1, Group F and G |
| Overall Depth | 18-3/4 in |
| Full Load Current | 6.6 A |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
