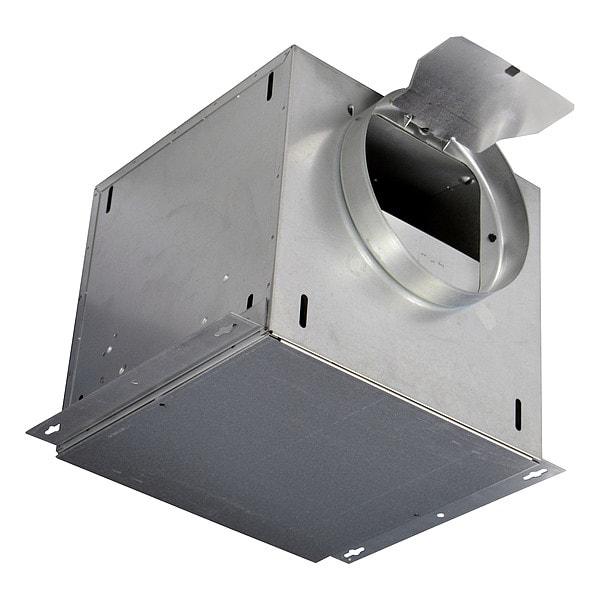

In-Line Cabinet Fan, Steel, 12 1/4" D
| Phase | 1 |
|---|---|
| Duct Shape | Round |
| Blower Wheel Curve | Forward |
| Duct Diameter | 6 in |
| Overall Depth | 12-1/4 in |
| Exhaust Airflow @ 0.000 in SP | 149 cfm |
| Inlet Width | 5-7/8 in |
| Item | In-Line Cabinet Fan |
| Standards | Not Applicable |
| Motor Type | Electronically Commutated |
| Duct Width | Not Applicable |
| Exhaust Airflow @ 0.250 in SP | 114 cfm |
| Overall Height | 11-7/8 in |
| Maximum Noise Level | 1.5 sones |
| Full Load Current | 0.22 A |
| Motor Enclosure | Totally Enclosed |
| Maximum Airflow | 149 cfm |
| Fan Wattage | 14 W |
| Overall Width | 12-1/4 in |
| Vent Design | Ducted |
| Profile Height Family | Low |
| Duct Height | Not Applicable |
| Number of Speeds | Variable |
| Mounting Orientation | Horizontal, Vertical |
| Motor Output Power | 14 W |
| Exhaust Airflow @ 0.400 in SP | 60 cfm |
| Exhaust Airflow @ 0.800 in SP | Not Applicable |
| Exhaust Airflow @ 0.600 in SP | Not Applicable |
| Exhaust Airflow @ 0.100 in SP | 163 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | 1.5 sones |
| Exhaust Airflow @ 0.200 in SP | 130 cfm |
| Discharge Direction | Horizontal |
| Noise Level @ 0.250 in SP @ 5 ft | Not Applicable |
| Profile Width Family | Single-Wide |
| Frequency | 60 Hz |
| Housing Material | Steel |
| Noise Level @ 0.125 in SP @ 5 ft | 1.5 sones |
| Nameplate Voltage | 115V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
