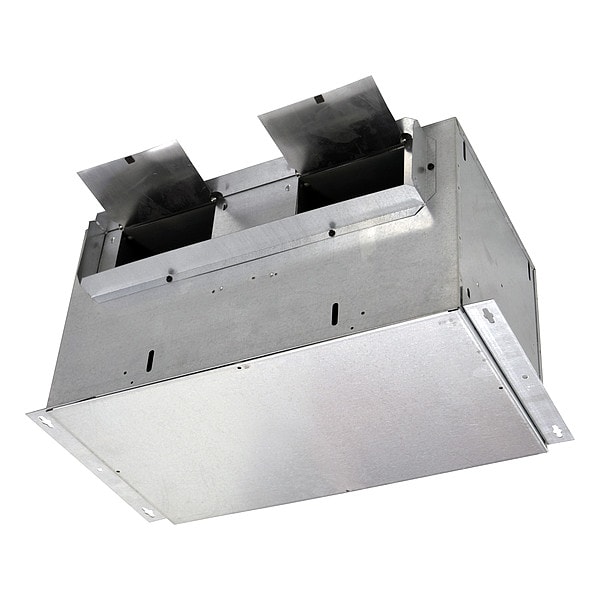

In-Line Cabinet Fan, Steel, 12 1/4" D
| Phase | 1 |
|---|---|
| Maximum Airflow | 660 cfm |
| Standards | Not Applicable |
| Exhaust Airflow @ 0.250 in SP | 607 cfm |
| Profile Height Family | Low |
| Duct Height | 18 1/2 in |
| Maximum Noise Level | 4.7 sones |
| Blower Wheel Curve | Forward |
| Inlet Width | 18-1/2 in |
| Motor Enclosure | Totally Enclosed |
| Overall Depth | 12-1/4 in |
| Full Load Current | 1.7 A |
| Overall Height | 11-7/8 in |
| Duct Diameter | Not Applicable |
| Motor Type | Electronically Commutated |
| Mounting Orientation | Horizontal, Vertical |
| Item | In-Line Cabinet Fan |
| Vent Design | Ducted |
| Exhaust Airflow @ 0.000 in SP | 660 cfm |
| Fan Wattage | 218 W |
| Duct Shape | Rectangular |
| Number of Speeds | Variable |
| Overall Width | 21-1/2 in |
| Duct Width | 4 1/2 in |
| Exhaust Airflow @ 0.400 in SP | 500 cfm |
| Housing Material | Steel |
| Motor Output Power | 140 W |
| Profile Width Family | Double-Wide |
| Noise Level @ 0.125 in SP @ 5 ft | 4.7 sones |
| Exhaust Airflow @ 0.600 in SP | Not Applicable |
| Noise Level @ 0.250 in SP @ 5 ft | Not Applicable |
| Frequency | 60 Hz |
| Exhaust Airflow @ 0.800 in SP | Not Applicable |
| Exhaust Airflow @ 0.200 in SP | 575 cfm |
| Nameplate Voltage | 115V AC |
| Exhaust Airflow @ 0.100 in SP | 600 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | 4.7 sones |
| Discharge Direction | Horizontal |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
