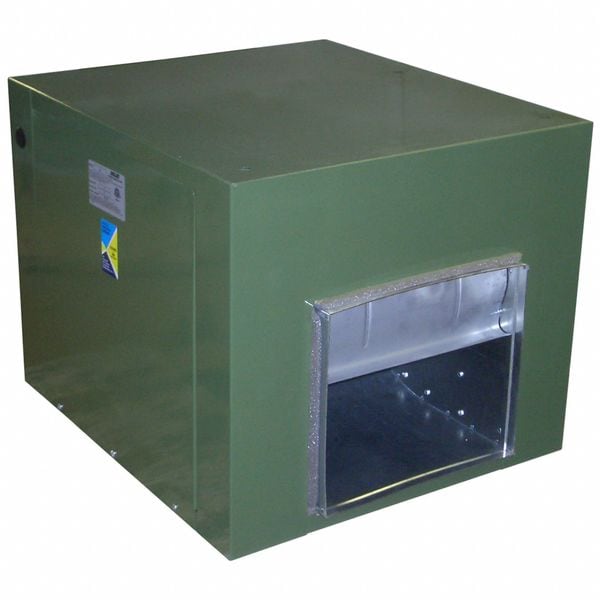

In-Line Duct Blower, 12-7/8 in Wheel Dia.
| Item | In-Line Duct Blower |
|---|---|
| Motor Enclosure | Open Dripproof |
| Drive Type | Direct Drive |
| Phase | 1 |
| Wheel Material | Steel |
| Housing Material | Steel |
| Wheel Type | Forward-Curved |
| Rotation | CW |
| Speed Controllable | Variable Speed |
| Outlet Duct Connection Height | 13-3/8 in |
| Assembly | Assembled |
| Includes Drive Package | Yes |
| Outlet Duct Connection Width | 15-5/8 in |
| Inlet Duct Connection Width | 25 in |
| Maximum Static Pressure | 1.25 in wc |
| Inlet Duct Connection Height | 21 in |
| Airflow @ 0.500 in SP | 2,100 cfm |
| Nameplate Voltage | 115/208-230V |
| Wheel Diameter | 12-7/8 in |
| Motor Horsepower | 0.5 HP |
| Overall Depth | 27-1/2 in |
| Airflow @ 0.250 in SP | 2,600 cfm |
| Overall Height | 23 in |
| Overall Width | 27 in |
| Maximum Inlet Air Temperature | 104 deg F |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
