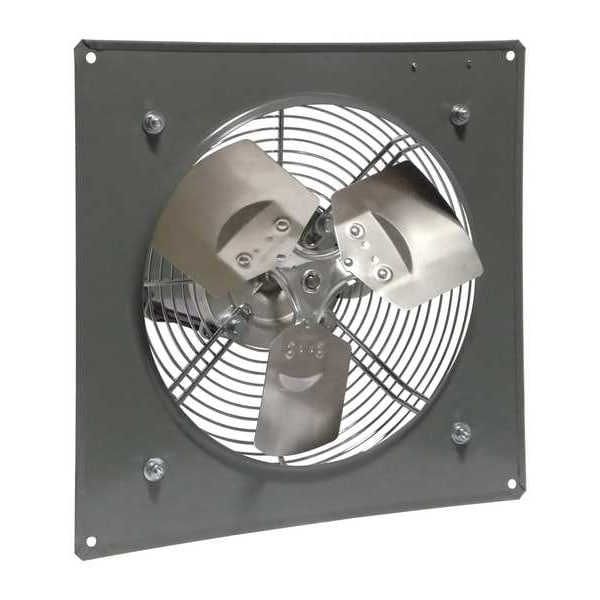

Panel Fan, 12In Bld Dia, Steel, 115 V
| Phase | 1 |
|---|---|
| Number of Blades | 3 |
| Motor Enclosure | Totally Enclosed Air Over |
| Frame Material | Steel |
| Motor Insulation | Class 1 |
| Number of Speeds | Variable |
| Standards | OSHA |
| Item | Panel Fan |
| Motor Type | DC |
| Bearing Type | Ball |
| Blade Material | Steel |
| Guard Material | Steel |
| Frame Finish | Powder Coated |
| Overall Height | 17-1/4 in |
| Maximum Airflow | 1,350 cfm |
| Overall Width | 17-1/4 in |
| Frequency | 50 Hz |
| Duct Shape | Not Applicable |
| Speed Controllable | No |
| Exhaust Airflow @ 0.400 in SP | Not Applicable |
| Guard Type | Intake |
| Drive Type | Direct Drive |
| Mounting Orientation | Horizontal |
| Full Load Current | 1 A |
| Ring-Mount Style | Not Applicable |
| Includes Grill | No |
| Blade Diameter | 12 in |
| Duct Width | Not Applicable |
| Venturi Depth | Not Applicable |
| Exhaust Airflow @ 0.250 in SP | 1,150 cfm |
| Duct Diameter | Not Applicable |
| Duct Height | Not Applicable |
| Number of Shutters | Not Applicable |
| Exhaust Airflow @ 0.375 in SP | Not Applicable |
| Overall Depth | 11 in |
| Vent Design | Ductless |
| Exhaust Airflow @ 0.500 in SP | Not Applicable |
| Nameplate Voltage | 115V AC |
| Ventilation Type | Exhaust |
| Maximum Noise Level | 10 sones |
| Motor Horsepower | 1/15 hp |
| Maximum Ambient Operating Temperature | 104 deg F |
| Venturi Diameter | Not Applicable |
| Motor Speed | 1,450 rpm |
| Noise Level @ 0.000 in SP @ 5 ft | 10 sones |
| Duct Length | Not Applicable |
| Exhaust Airflow @ 0.125 in SP | 1,275 cfm |
| Noise Level @ 0.100 in SP @ 5 ft | Not Applicable |
| Assembled | Assembled |
| Includes Motor | Yes |
| Guard Finish | Chrome |
| Exhaust Airflow @ 0.000 in SP | 1,350 cfm |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
