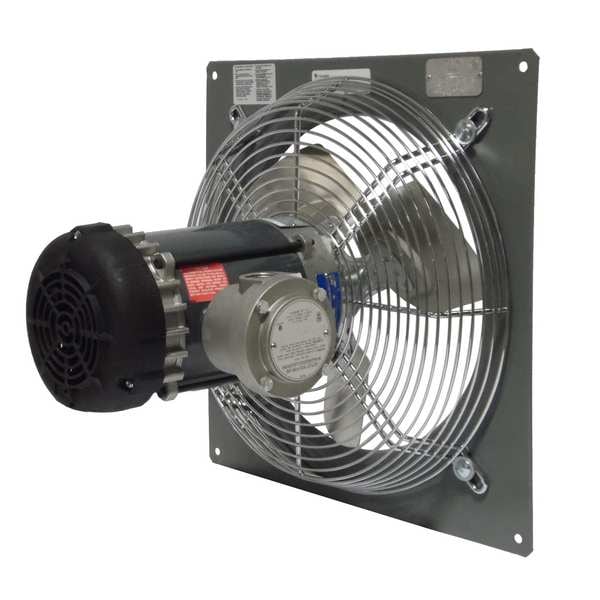

Panel Fan, 14In Bld Dia, Steel, 230/460 V
| Phase | 3 |
|---|---|
| Number of Blades | 3 |
| Frame Finish | Powder Coated |
| Number of Speeds | Variable |
| Frame Material | Steel |
| Motor Type | DC |
| Guard Material | Steel |
| Motor Insulation | Class 1 |
| Blade Material | Steel |
| Item | Panel Fan |
| Motor Enclosure | Totally Enclosed Air Over |
| Bearing Type | Ball |
| Standards | OSHA |
| Mounting Orientation | Horizontal |
| Guard Finish | Chrome |
| Exhaust Airflow @ 0.400 in SP | Not Applicable |
| Noise Level @ 0.000 in SP @ 5 ft | 15 sones |
| Ventilation Type | Exhaust |
| Exhaust Airflow @ 0.125 in SP | 2,000 cfm |
| Includes Motor | Yes |
| Overall Depth | 13-3/4 in |
| Includes Grill | No |
| Venturi Diameter | Not Applicable |
| Hazardous Location Class | Class I, Div 1, Group C and D; Class II, Div 1, Group F and G |
| Exhaust Airflow @ 0.500 in SP | Not Applicable |
| Drive Type | Direct Drive |
| Frequency | 50 Hz |
| Ring-Mount Style | Not Applicable |
| Speed Controllable | No |
| Overall Width | 19-1/4 in |
| Number of Shutters | Not Applicable |
| Exhaust Airflow @ 0.250 in SP | 1,950 cfm |
| Vent Design | Ductless |
| Full Load Current | 6.6 A |
| Exhaust Airflow @ 0.000 in SP | 2,190 cfm |
| Venturi Depth | Not Applicable |
| Duct Height | Not Applicable |
| Overall Height | 19-1/4 in |
| Guard Type | Intake |
| Maximum Ambient Operating Temperature | 104 deg F |
| Motor Speed | 1,725 rpm |
| Assembled | Assembled |
| Duct Shape | Not Applicable |
| Blade Diameter | 14 in |
| Maximum Airflow | 2,190 cfm |
| Exhaust Airflow @ 0.375 in SP | Not Applicable |
| Noise Level @ 0.100 in SP @ 5 ft | Not Applicable |
| Nameplate Voltage | 230/460V AC |
| Motor Horsepower | 0.3333 HP |
| Maximum Noise Level | 15 sones |
| Duct Length | Not Applicable |
| Duct Diameter | Not Applicable |
| Duct Width | Not Applicable |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
