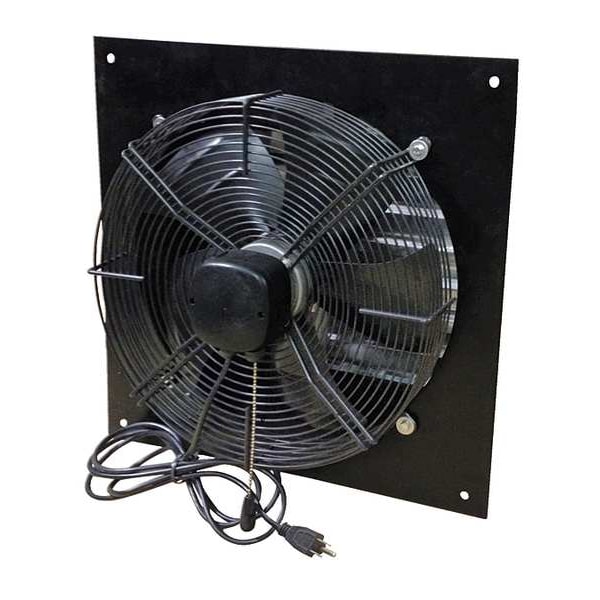

Shutter Mount Exhaust Fan, 12", 3 Speed, 1100/900/800 cfm
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Blade Dia. | 12 in |
| Number of Speeds | 3 |
| Fan Voltage | 115 V |
| CFM @ 0.000-In. SP | 1100/900/800 |
| Exhaust/Supply Fan Motor HP | 1/12 hp |
| Square Opening Required | 10-1/2 to 20 in |
| Width | 16-7/8 in |
| Height | 16 7/8 in |
| Item | Shutter Mount Exhaust Fan |
| Standards | ETL, OSHA Compliant |
| Thermal Protection | Yes |
| Frame Material | Steel |
| Frame Finish | Powder Coated |
| Max. Ambient Temp. | 40 deg C |
| Number of Blades | 5 |
| Guard Material | Steel |
| Speed Control Item Number | CN5041 |
| Full Load Amps | 0.8/0.8/0.7 |
| Hz | 60 |
| Max. Depth | 8-3/8 in |
| Wire Guard Finish | Powder Coated |
| Motor Insulation | Class A |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor Type | Single Phase |
| Voltage | 115 V |
| Phase | 1 |
| Drive Package Included | No |
| Includes | Power Cord with 115V 3 Prong Plug, Shutter, Wire Guard |
| Blade Material | Steel |
| Bearing Type | Permanently Lubricated Sealed Ball |
| Overall Height | 16-7/8 in |
| Nameplate Voltage | 115V AC |
| Duct Width | Not Applicable |
| Noise Level @ 0.100 in SP @ 5 ft | 8 sones |
| For Cut-Out Height | 14 in |
| For Cut-Out Width | 14 in |
| Supply Airflow @ 0.000 in SP | 1,100 cfm |
| Vent Design | Ductless |
| Duct Diameter | Not Applicable |
| Ventilation Type | Exhaust |
| Manufacturer Warranty Length | 1 yr |
| Exhaust Airflow @ 0.100 in SP | 1,100 cfm |
| Overall Width | 16-7/8 in |
| For Maximum Wall Thickness | 5 in |
| Exhaust Airflow @ 0.125 in SP | 1,100 cfm |
| Blade Diameter | 12 in |
| For Cut-Out Length | 14 in |
| Noise Level @ 0.000 in SP @ 5 ft | 8 sones |
| Guard Type | Intake |
| Includes Motor | Yes |
| Housing Material | Steel |
| Wattage | 92 W |
| Guard Finish | Powder Coated |
| Duct Height | Not Applicable |
| For Minimum Wall Thickness | 5 in |
| Frequency | 60 Hz |
| Number of Fans | 1 |
| Maximum Noise Level | 8 sones |
| Full Load Current | 0.8 A |
| Exhaust Airflow @ 0.000 in SP | 1,100 cfm |
| Fan Style | Shutter-Mounted |
| Speed Controllable | Yes |
| Maximum Airflow | 1,100 cfm |
| Overall Depth | 8-3/8 in |
| Control Type | Pull Chain |
| Includes Grill | No |
| Assembled | Assembled |
| Overall Diameter | 16-7/8 in |
| Drive Type | Direct Drive |
| Motor Horsepower | 1/12 hp |
| Maximum Ambient Operating Temperature | 194 deg F |
| Includes Dehumidistat | No |
| Duct Shape | Not Applicable |
| Electrical Connection | Plug-In |
| Housing Finish | Powder Coated |
| Power Cord Length | 9 ft |
| Motor Speed | 1,600 rpm |
| Method of Construction | Stamped |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
