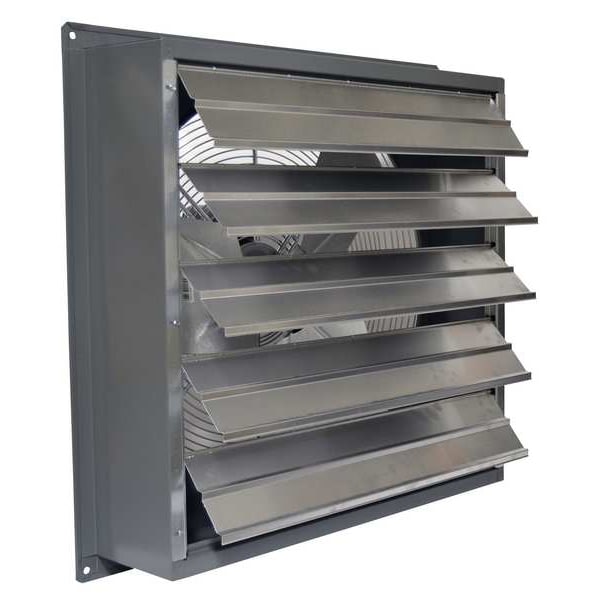

Stndrd Fan, 20In Bl, Steel, 115/208-280V
| Number of Speeds | Variable |
|---|---|
| Item | Standard Fan |
| Number of Blades | 3 |
| Motor Insulation | Class F |
| Motor Enclosure | Totally Enclosed Air Over |
| Frame Finish | Powder Coated |
| Guard Material | Chrome Plated Wire |
| Includes | Steel Welded Box; Guard; Blade |
| Phase | 1 |
| Motor Type | EC Smart Motor |
| Blade Material | Steel |
| Frame Material | Steel |
| Nameplate Voltage | 115/208-280V AC |
| Flange Depth | 6-3/4 in |
| Drive Type | Direct Drive |
| Ventilation Type | Exhaust |
| Overall Width | 17 in |
| Noise Level @ 0.000 in SP @ 5 ft | 30 sones |
| Maximum Noise Level | 30 sones |
| Ring-Mount Style | Not Applicable |
| Frequency | Not Applicable |
| Duct Shape | Not Applicable |
| Maximum Ambient Operating Temperature | 104 deg F |
| Motor Speed | 1,800 rpm |
| Wattage | Not Applicable |
| Housing Finish | Powder Coated |
| Blade Diameter | 20 in |
| Exhaust Airflow @ 0.400 in SP | Not Applicable |
| Mounting Orientation | Vertical |
| Shaft Diameter | 1/4 in |
| Motor Horsepower | 0.5 HP |
| Exhaust Airflow @ 0.375 in SP | Not Applicable |
| Exhaust Airflow @ 0.250 in SP | 2,930 cfm |
| Includes Motor | Yes |
| Exhaust Airflow @ 0.125 in SP | 3,180 cfm |
| Exhaust Airflow @ 0.000 in SP | 3,440 cfm |
| Overall Height | 25-1/4 in |
| Guard Type | Intake |
| Duct Diameter | Not Applicable |
| Venturi Depth | Not Applicable |
| Venturi Diameter | Not Applicable |
| Exhaust Airflow @ 0.500 in SP | Not Applicable |
| Housing Material | Steel |
| Assembled | Assembled |
| Full Load Current | 5.3 A |
| Flange Width | 25-1/4 in |
| Guard Finish | Powder Coated |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
