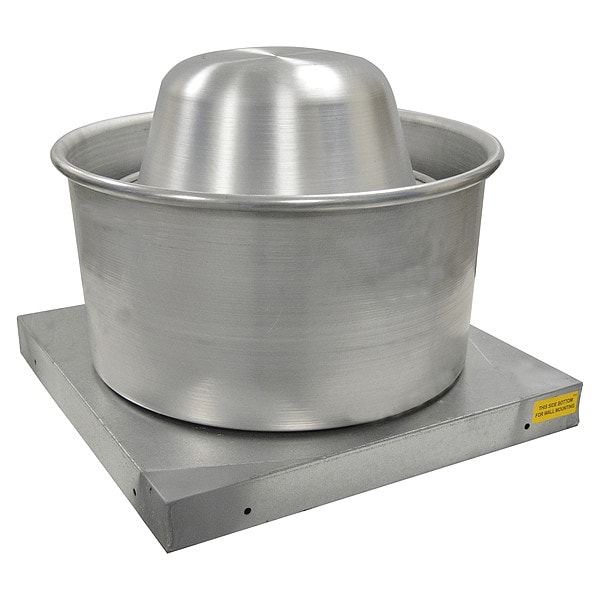

Upblast Exhauster, 1 Phase, 1/12 hp
| Number of Speeds | Variable |
|---|---|
| Standards | UL 705 |
| Wheel Material | Aluminum |
| Power Source | Electric Corded |
| Mount Type | Roof Curb |
| Frequency | 50/60 Hz |
| Overall Width | 17-3/4 in |
| Item | Upblast Exhauster |
| Application | Commercial Buildings, Offices, Restaurants, Warehouses |
| Series | ALX-UD-EC |
| Wheel Type | Backward Inclined |
| Includes Motor | Yes |
| Housing Material Fabrication | Spun |
| Cutout Length | 13 in |
| Drive Type | Direct Drive |
| Includes Drive Package | Yes |
| Base Height | 2 in |
| Features | On-Board Speed Adjustment Allows Simple Setup and Balancing with LED Display, Quick Release Latches for Easy Motor Access |
| For Air Type | Clean Air |
| Wheel Diameter | 9 in |
| Housing Material | Aluminum |
| Electrical Connection | Wire Leads |
| Phase | 1 |
| Overall Height | 14-1/4 in |
| Base Width | 19 in |
| Weight | 30 lb |
| Base Length | 19 in |
| Base Diameter | Not Applicable |
| Motor Horsepower | 1/12 hp |
| Assembly | Assembled |
| Base Shape | Square |
| Exhaust Airflow @ 0.250 in SP | 425 cfm |
| Nameplate Voltage | 115/230V AC |
| Exhaust Airflow @ 0.500 in SP | 340 cfm |
| Maximum Static Pressure | 0.5 in wc |
| Exhaust Airflow @ 0.000 in SP | 525 cfm |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
